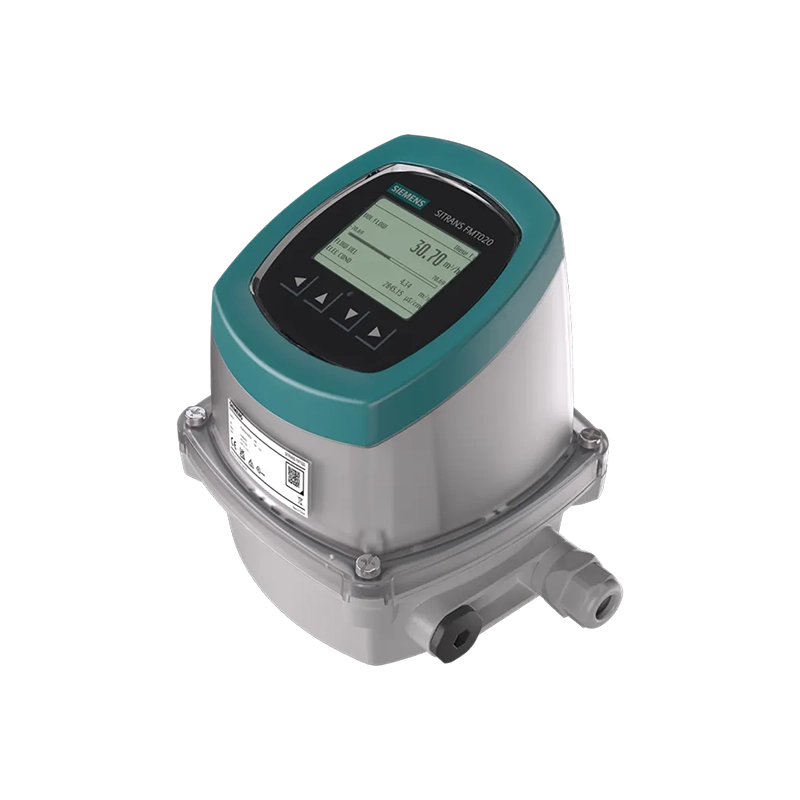

Description

Simultaneously measure volumetric flow, flow velocity and electrical conductivity
Cost-effective solution, backward compatible with older existing flowmeter sensors (MAG 5100W, MAG 3100, MAG 3100 P, MAG 3100 HT)
Equipped with a large, rotatable, backlit 14-digit graphical display for optimal visibility in all mounting positions
Easy programming and commissioning with menu and wizard in 14 languages
Compact or remote mounting possible with the same housing.
Enhanced diagnostics like empty-pipe monitoring and device self-check
Plug & Play modules allow easy on-site replacement and commissioning of the transmitter in just minutes
Multi-functional input/output channels for process control
Certification for a wide range of communication protocols and industry standards

Specifications

Measurement of	Volume flow Flow velocity Electrical conductivity
Input / output	1 current output 1 digital output 1 relay output
Communication	HART PROFINET EtherNet/IP MODBUS RTU Profibus Bluetooth
Display	Graphical 60x40mm, 14-digit
Enclosure	Polycarbonate IP66/67, NEMA 4X/6P
Power supply	AC Version: 100 to 240 V AC, 50 to 60 Hz, 25 VA DC Version: 24 V DC ±20 %
Ambient temperature	-40 to +65 °C (-40 to +149 °F)
Approvals	CE (LVD, EMC, RoHS), UKCA UL, CSA certified per standard EN / IEC 61010-1
