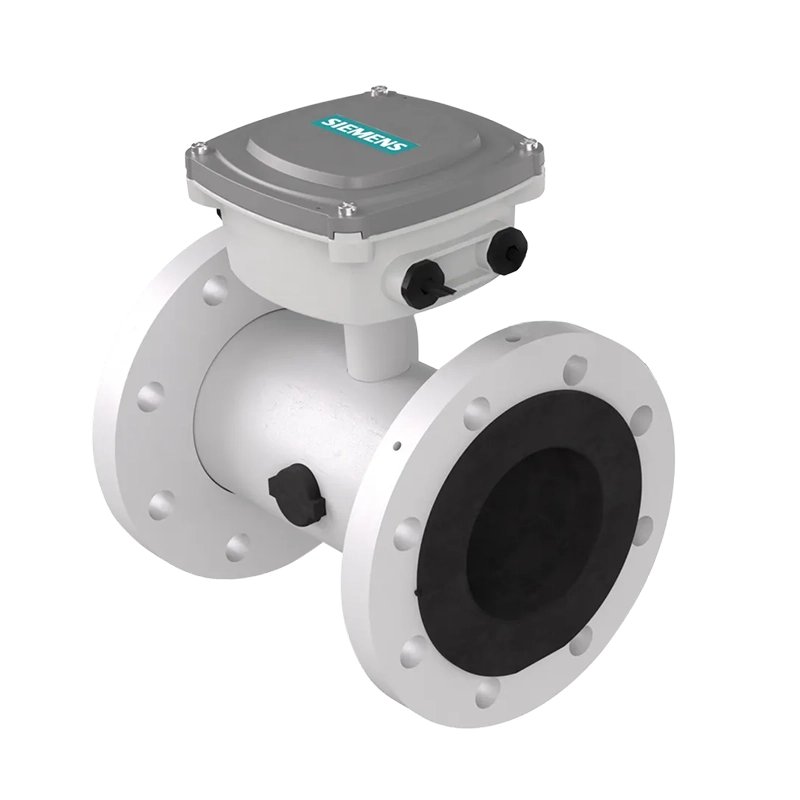

Description

Benefits

Zero Up and Zero Down installation capabilities
EPDM lining specifically for drinking water applications requiring special approvals
NBR rubber liner for all water and wastewater applications
Increased low flow accuracy for water leak detection
Suitable for underground installation and permanent immersion (IP68) or underwater installation
Integrated grounding electrodes – no grounding rings required for many applications
Short delivery time
Connected to the SITRANS FMT020 transmitter, it forms the magnetic flowmeter system SITRANS FM520:
• SENSORPROM^TM Technology provides an automatic upload of start-up settings and calibration data for easy commissioning
• Plug & Play – allows easy on-site replacement and commissioning of the transmitter in just a few minutes
• Mounting flexibility – compact or remote installation possible
• Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
• Service and diagnostics – Designed to allow in-situ verification for easy performance check

Measuring range	0 to 10 m/s
Nominal sizes	From DN 15 to DN 1200 (1/2″ to 48″)
Accuracy	Standard 0.4% of rate, option for 0.2% of rate
Operating pressure	Max. 40 bar (Max. 580 psi) (dependent on sensor size)
Ambient temperature	–20 to 70 °C (-4 to 158 °F)
Medium temperature	-10 to 70 °C (14 to 158 °F)
Liners	EPDM NBR
Electrodes	Hastelloy C-276 Built-in grounding electrodes
Material	Carbon steel, with corrosion resistant two-component epoxy coating
Drinking water approvals	EPDM: WRAS, NSF/ANSI Standard 61, DVGW 270, AS/NZS 4020, GB/T 5750, ACS and BelgAqua
