Description

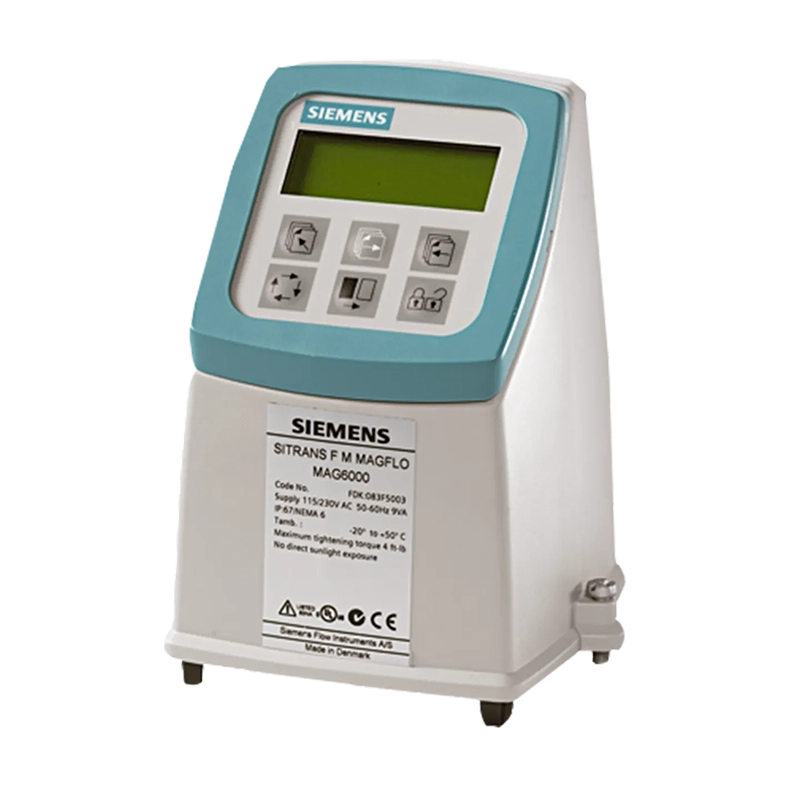

Cost-effective transmitter with high performance
The transmitter is rugged, suitable for universal applications and has high measurement accuracy
Multiple function outputs for process control
Display and keypad available in several languages
SITRANS FM portfolio – our integrated platform enables flexible use of the MAG 500/ 6000 transmitter for all products (MAG 5100/ 3100/ 1100):
• Unique SensorProm technology – stores critical, sensor-specific data and passes it to the transmitter. This allows a simple, flexible commissioning of the sensor.
• Plug & Play – allows easy on-site replacement and commissioning of the transmitter in just minutes
• “Hot swapable” – exchangeable during operation
• Mounting flexibility – compact or separate installation possible
• Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
• Service and diagnostics – Designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field

Specifications

Accuracy	0.4 % ±1 mm/s
Input / output	1 current output 1 digital output 1 relay output
Communication	HART
Display	Background illumination with alphanumeric text, 3 x 20 characters
Enclosure	IP67 (NEMA 4x/6) IP20 (NEMA 2)
Power supply	12-24 V a.c./d.c. 115-230 V a.c.
Ambient temperature	From -20 to 50 °C (-4 to 122 °F)
Approvals	MI-001 Danak PTB OIML R49
Ex-approvals	FM/CSA Class 1, Div 2
