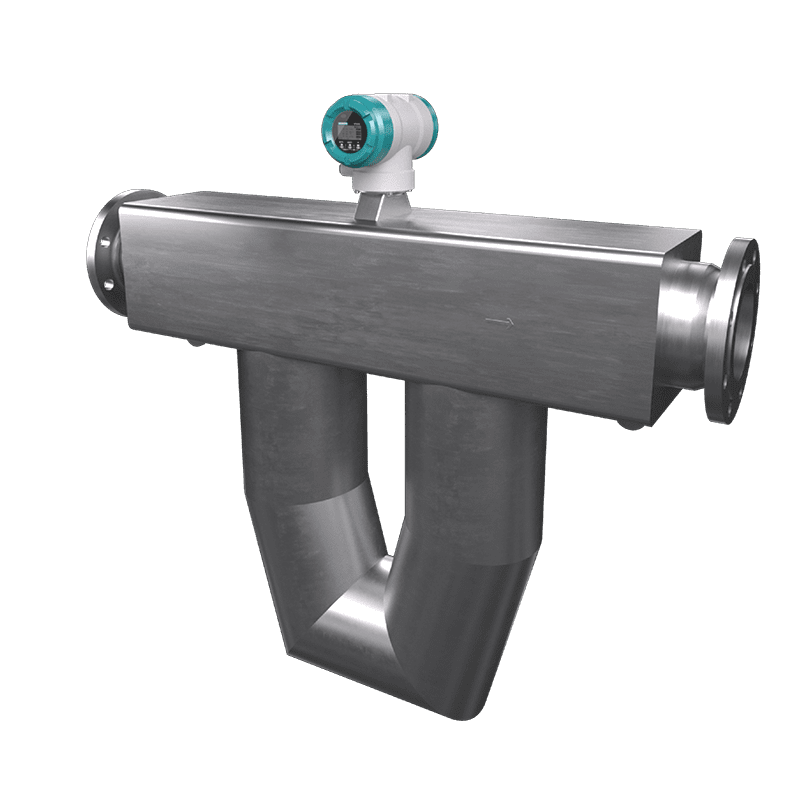

Siemens SITRANS FC720/740 Coriolis Flowmeter

SITRANS FC720/740

Generous in its size whilst delivering on durability and the performance required in large scale processes

  • FCS700 sensor + FCT020/FCT040 transmitter = FC720/FC740 flowmeter system
  • FCS700 sensors combine with compact or remote transmitters
  • Nominal flow rates from 250 000 kg/h to 900 000 kg/h
  • Gas void fraction and net oil computing functions deliver in multi-phase applications
  • High power tube driver for dependable measurements in high damping applications
Categories , , ,
Get a Quote Now

GET INSTANT QUOTE

    FEATURES

    Product Details

    Description

    Benefits

    • Choose your sensor based on your applications need and afterwards select the transmitter model based on the communication and performance requested.
    • The modular concept allows to find the right fit for your need.
    • Maximum accuracy due to calibration facility accredited according to ISO/IEC 17025
    • Tube health check (diagnostic verification) alerts of potential performance issues doe to process events, e.g. unwanted gas or vapor breakout & solid deposits building up in the tubes.
    • High measurement sensitivity & intelligent dynamic range keeps the measurement active even in demanding high damping cases.
    • Precise flow rate measurement of fluids and gases, multi-phase fluids and fluids with specific gas content using the Coriolis principle.

    Specifications

    Detail

    SITRANS FC120/140 SITRANS FC520/540 SITRANS FC620/640 SITRANS FC720/740
    Measuring range 0.01 – 1500 kg/h 0.8 – 255000 kg/h 1.5 – 170000 kg/h 125 – 1100000 kg/h
    Maximum process temp. -50 to +260 °C
    -58 to +500 °F    		 -70 to +200 °C
    -94 to +392 °F    		 -196 to +350 °C
    -321 to +662 °F    		 -70 to +350 °C
    -94 to +662 °F
    Wetted materials Alloy 22/2.4602 and
    316L/1.4404    		 316L SS/1.4404 316L SS/1.4404 or
    Alloy 22/2.4602    		 316L SS/1.4404 or
    Alloy 22/2.4602
    Sensor size DN1 – DN8 DN10 – DN80 DN15 – DN65 DN100 – DN200
    Maximum pressure Up to 285 bar
    Up to 4183 psi    		 Up to 100 bar
    Up to 1450 psi    		 Up to 700 bar
    Up to 10000 psi    		 Up to 100 bar
    Up to 1450 psi
    Approvals
    – Ex-approvals ATEX
    IECEx
    FM
    Korea Ex    		 ATEX
    IECEx
    FM
    Korea Ex    		 ATEX
    IECEx
    FM
    Korea Ex    		 ATEX
    IECEx
    FM
    Korea Ex
    – Hygienic 3A
    EHEDG    		 3A
    EHEDG
    – Marine
    (class 2 and 3)    		 Det Norske Veritas
    Lloyds Register
    Bureaux Veritas
    American Bureaux of
    Shipping
    Korean Register    		 Det Norske Veritas
    Lloyds Register
    Bureaux Veritas
    American Bureaux of
    Shipping
    Korean Register    		 Det Norske Veritas
    Lloyds Register
    Bureaux Veritas
    American Bureaux of
    Shipping
    Korean Register    		 Det Norske Veritas
    Lloyds Register
    Bureaux Veritas
    American Bureaux of
    Shipping
    Korean Register
    Features Functional Safety SIL2/3
    Custody Transfer (NTEP)
    Namur NE 21, NE 95
    Tube Health Check    		 Functional Safety SIL2/3
    Custody Transfer (NTEP)
    Namur NE 21, NE 95
    Tube Health Check    		 Functional Safety SIL2/3
    Custody Transfer (NTEP)
    Namur NE 21, NE 95
    Tube Health Check    		 Functional Safety SIL2/3
    Custody Transfer (NTEP)
    Namur NE 21, NE 95
    Tube Health Check
