SITRANS FC120/140

Precision Coriolis multi-parameter flowmeter systems for low flow applications.

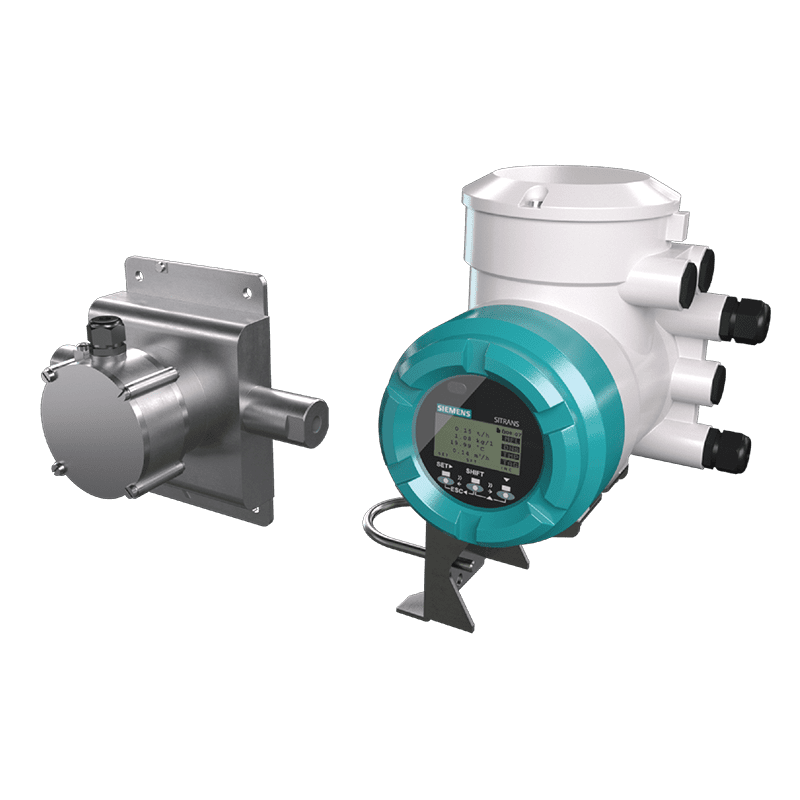

FCS100 sensor + FCT020/FCT040 transmitter = FC120/FC140 flowmeter system
FCS100 sensors always combine with a remote transmitter, via a connecting cable
Strong signal to noise characteristic resistant to process and external influence
Batching function with leakage detection and batch control for precise dosing
Accurate density measurement and up to four fraction (concentration) measurements

Description

Benefits

Choose your sensor based on your applications need and afterwards select the transmitter model based on the communication and performance requested.
The modular concept allows to find the right fit for your need.
Maximum accuracy due to calibration facility accredited according to ISO/IEC 17025
Tube health check (diagnostic verification) alerts of potential performance issues doe to process events, e.g. unwanted gas or vapor breakout & solid deposits building up in the tubes.
High measurement sensitivity & intelligent dynamic range keeps the measurement active even in demanding high damping cases.
Precise flow rate measurement of fluids and gases, multi-phase fluids and fluids with specific gas content using the Coriolis principle.

Specifications

Detail

	SITRANS FC120/140	SITRANS FC520/540	SITRANS FC620/640	SITRANS FC720/740
Measuring range	0.01 – 1500 kg/h	0.8 – 255000 kg/h	1.5 – 170000 kg/h	125 – 1100000 kg/h
Maximum process temp.	-50 to +260 °C -58 to +500 °F	-70 to +200 °C -94 to +392 °F	-196 to +350 °C -321 to +662 °F	-70 to +350 °C -94 to +662 °F
Wetted materials	Alloy 22/2.4602 and 316L/1.4404	316L SS/1.4404	316L SS/1.4404 or Alloy 22/2.4602	316L SS/1.4404 or Alloy 22/2.4602
Sensor size	DN1 – DN8	DN10 – DN80	DN15 – DN65	DN100 – DN200
Maximum pressure	Up to 285 bar Up to 4183 psi	Up to 100 bar Up to 1450 psi	Up to 700 bar Up to 10000 psi	Up to 100 bar Up to 1450 psi
Approvals
– Ex-approvals	ATEX IECEx FM Korea Ex	ATEX IECEx FM Korea Ex	ATEX IECEx FM Korea Ex	ATEX IECEx FM Korea Ex
– Hygienic		3A EHEDG	3A EHEDG
– Marine (class 2 and 3)	Det Norske Veritas Lloyds Register Bureaux Veritas American Bureaux of Shipping Korean Register	Det Norske Veritas Lloyds Register Bureaux Veritas American Bureaux of Shipping Korean Register	Det Norske Veritas Lloyds Register Bureaux Veritas American Bureaux of Shipping Korean Register	Det Norske Veritas Lloyds Register Bureaux Veritas American Bureaux of Shipping Korean Register
Features	Functional Safety SIL2/3 Custody Transfer (NTEP) Namur NE 21, NE 95 Tube Health Check	Functional Safety SIL2/3 Custody Transfer (NTEP) Namur NE 21, NE 95 Tube Health Check	Functional Safety SIL2/3 Custody Transfer (NTEP) Namur NE 21, NE 95 Tube Health Check	Functional Safety SIL2/3 Custody Transfer (NTEP) Namur NE 21, NE 95 Tube Health Check
