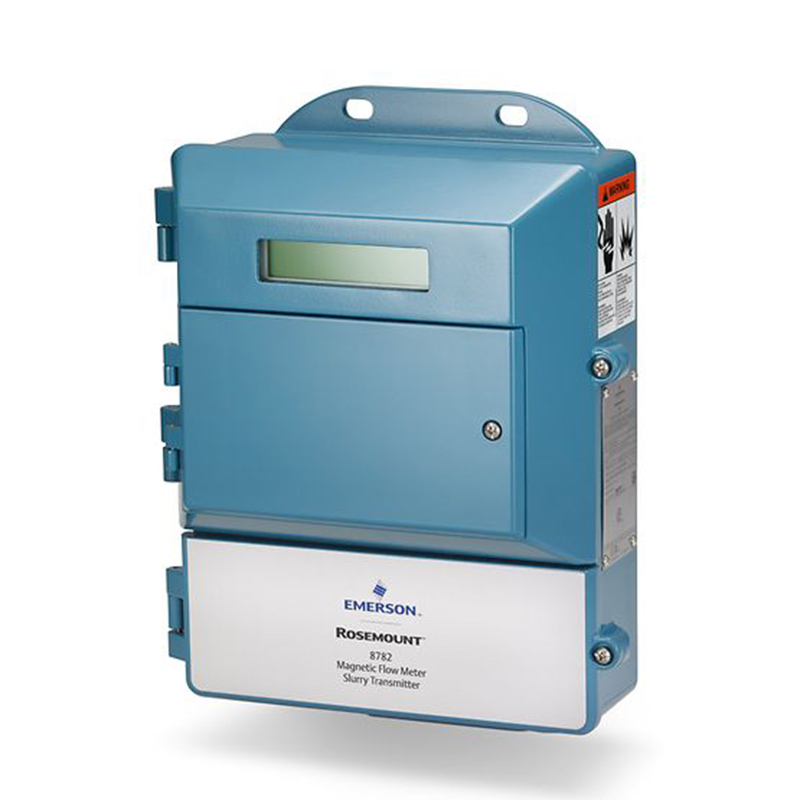

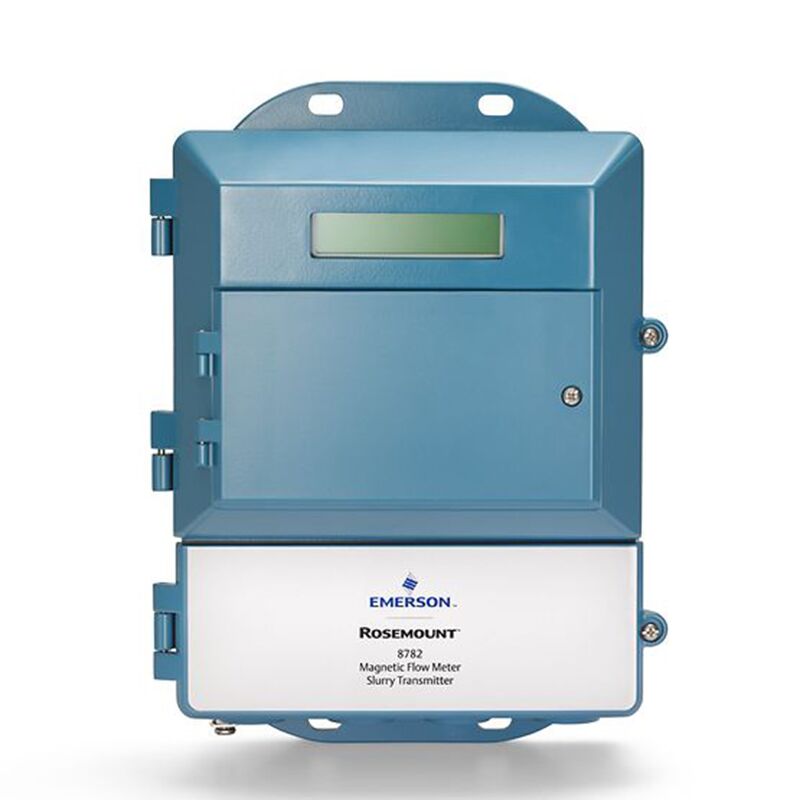

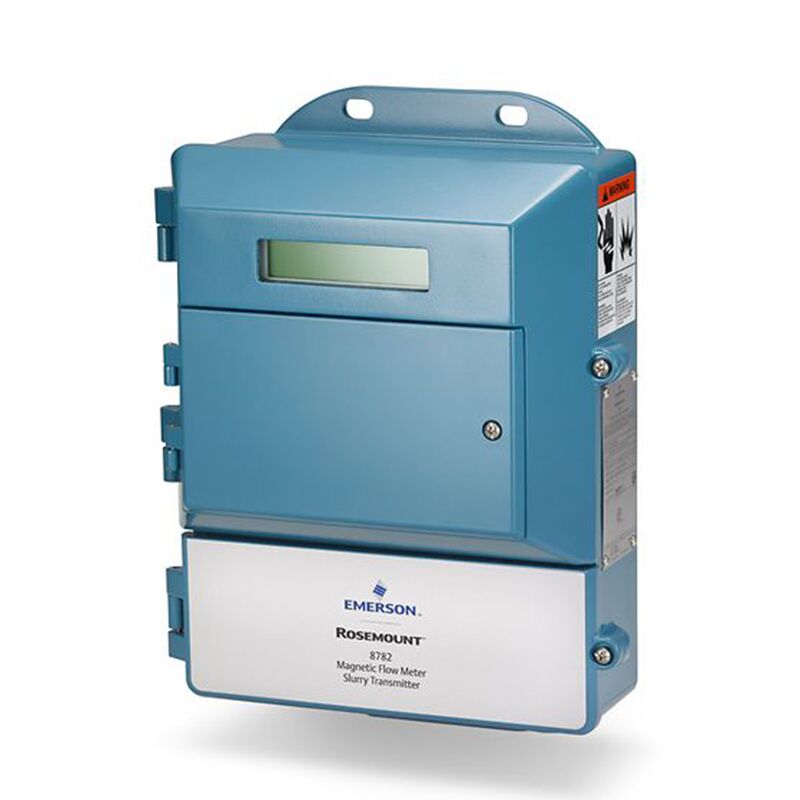

Rosemount 8782 Transmitter for Slurry Applications

The 8782 Slurry Transmitter is ideal for high noise applications where the highest levels of performance are required. Incorporating our latest in advanced signal processing, the 8782 is able to stabilize an otherwise noisy process flow signal without having to compromise on responsiveness. Advanced signal processing and real-time diagnostics deliver measurement confidence and the ability to automatically control the loop leading to: improved product quality, a reduction in raw material cost, minimizing waste and re-work required, and more peace of mind.

Categories , , ,
Get a Quote Now

GET INSTANT QUOTE

    FEATURES

    Product Details

    Description

    Features

    • Optimize customizable signal processing settings in noisy applications with high process noise diagnostic and selectable coil drive frequency options
    • Selectable levels of advanced signal processing allows for the elimination of signal spikes and noise while maintaining responsiveness
    • Increase uptime with Smart Meter Verification which monitors meter health and performance without stopping the process signal
    • Maximize reliability and protection against moisture with a dual-compartment transmitter enclosure

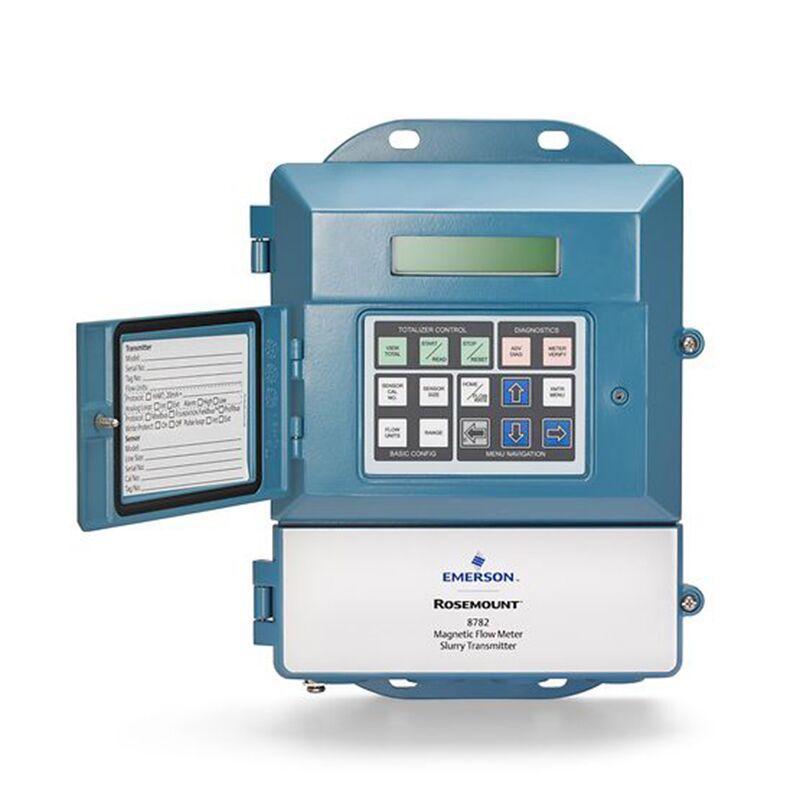

    • Intuitive 15 button Local Operator Interface with dedicated quick keys for ease of use
    • Gain the top benefits of AC magnetic meter systems combined with the stability and performance of pulsed DC technology
    • Tunable empty pipe diagnostic minimizes issues and false readings when the pipe is empty
    • Quickly verify installation integrity with included ground and wiring fault detection diagnostic
    • The 8782 Slurry Transmitter is designed for use with the MS Slurry Sensor

    Specifications

    Specifications

    Reference Accuracy
    ±0.25% with optional ±0.15% high accuracy
    Consult Product Data Sheet for full accuracy specifications
    Diagnostics
    Standard: Grounding and wiring fault, tunable empty pipe, electrode saturation, reverse flow detection and general electronics and meter circuit diagnostics
    Optional: Process diagnostics with coated electrode detection and high process noise detection
    Optional: Smart Meter Verification Professional
    Power Supply
    AC: 90 to 250V AC, 50-60Hz
    DC: 12 to 42V DC
    Safety Approvals
    Ordinary Locations
    ATEX non-sparking, increased safety; Dust
    Class I Div 2 Non-Incendive; Dust
    Class I Zone 2; Dust
    IECEx Non-Sparking, Increased Safety; IECEx Dust
    Enclosure Type
    Type 4X
    IP66/69
    Output Options
    HART 7 / 4-20mA + pulse
    Optional: DI/DO (Two Channels)
    Local Operator Interface
    15 button Local Operator Interface available with dedicated quick keys for diagnostics, basic configuration, and totalizers
    Supports English, French, German, Spanish, and Portuguese
    Sensor Compatibility
    MS Slurry Sensor
    8707 High Signal Sensor
