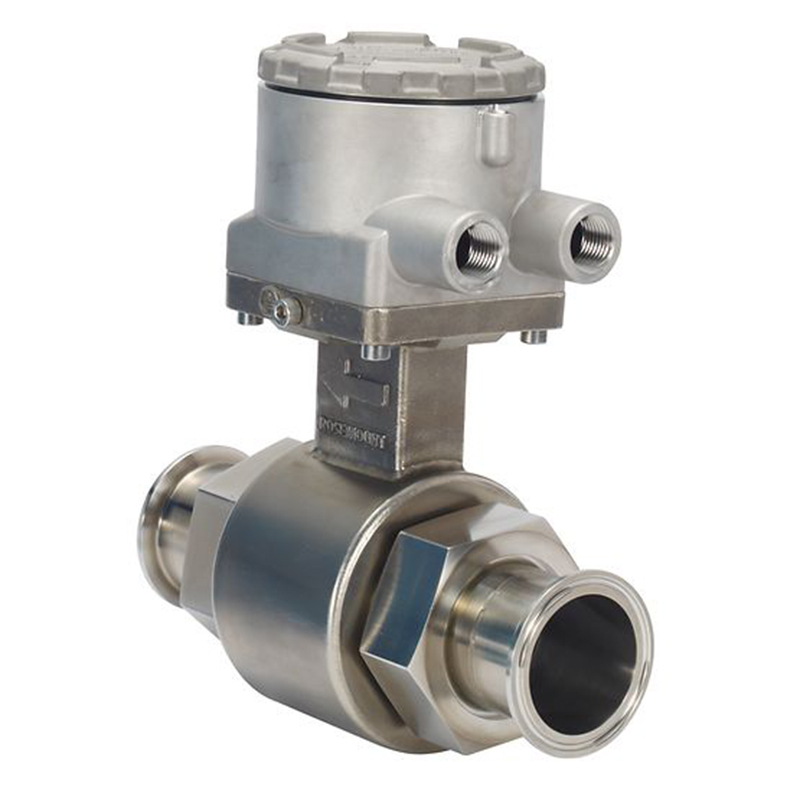

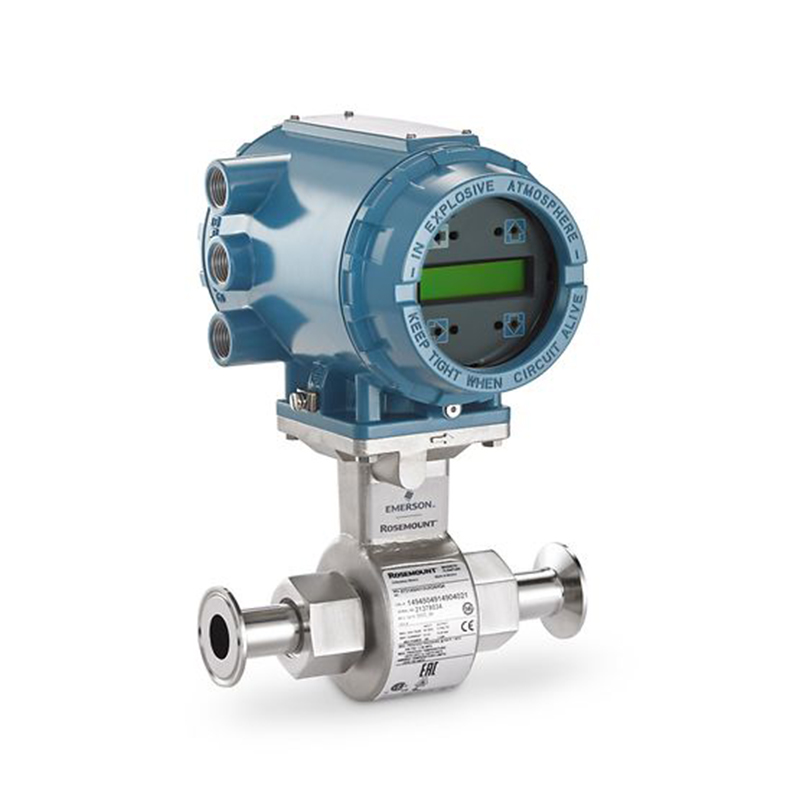

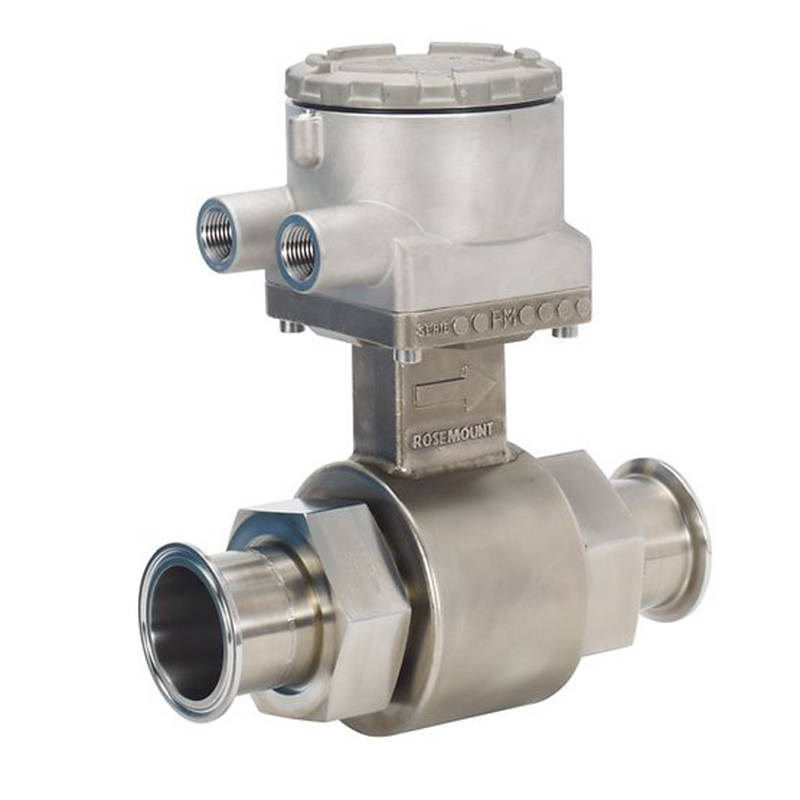

Rosemount 8721 Hygienic Magnetic Flow Meter Sensors

The Rosemount 8721 Hygienic Magnetic Flow Meter Sensor uses an all-welded meter body that is specifically designed for food, beverage and life science applications that demand safe, hygienic and reliable performance. All contact surfaces are constructed of FDA-approved materials designed in accordance with 3A standards. Additionally, the 8721 is available with a variety of sanitary process connections with easily accessed process gaskets to facilitate efficient inspection and maintenance.

GET INSTANT QUOTE

    FEATURES

    Product Details

    Description

    Features

    • Lightweight, compact stainless steel design makes installation easy
    • Rely on FDA-approved materials including 3-A finish certified by EHEDG for use in Grade A milk
    • Fully-welded meter body design allow for safety in hygienic applications
    • Sensor is CIP/SIP cleanable and the sensor I.D. matches the process piping to eliminate hard-to-clean step changes
    • Satisfy virtually any requirement with a variety of available sanitary process connections
    • Better facilitate inspection and maintenance with easily accessed process gaskets
    • Cut costs and improve efficiency with an obstructionless design featuring no moving parts to maintain or repair

    Specifications

    Specifications

    Accuracy
    Up to 0.25% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.5% over 40:1 flow turndown
    Line Sizes
    ½-4 inch (15-100 mm)
    Liner Materials
    PFA
    Electrode Materials
    316L Stainless Steel, Nickel Alloy, Platinum
    Consult factory for additional material options
    Process Connections
    Tri-Clamp® Sanitary Coupling
    IDF Sanitary Coupling (screw type)
    Weld Nipple
    DIN 11851 (Imperial and Metric)
    DIN 11864 (-1 and -2 Form A)
    SMS 1145
    DEN US 50 Weld Nipple
    Product Certifications
    3-A, EHEDG Type EL, PMO (M-b-350)
    Interchangeability
    Compatible with all 8700 Series transmitters
    Compatible with Legacy transmitters: 8712D, 8712C, 8732C, 8742C
