Description

Overview

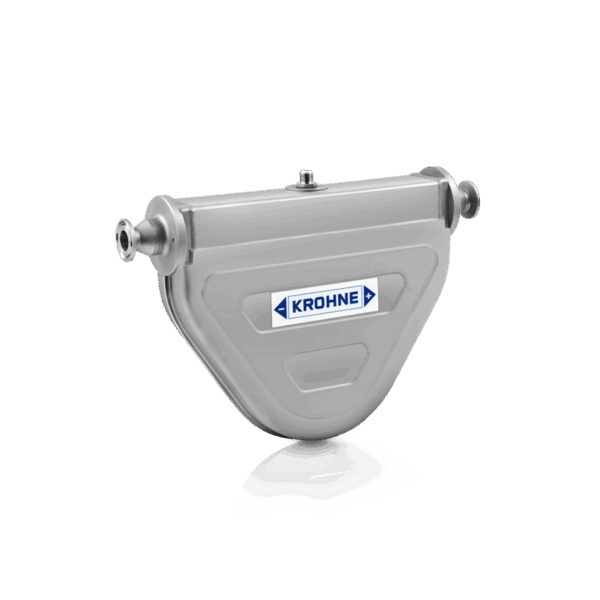

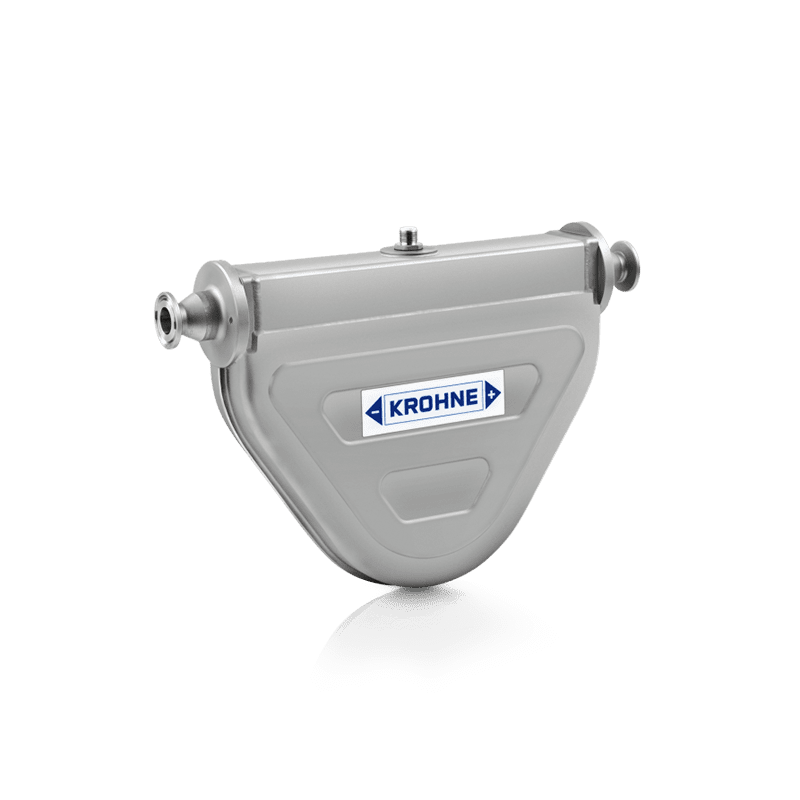

The OPTIBATCH 4011 is the standard Coriolis mass flowmeter for process batching of conductive and non-conductive liquids. It is a highly accurate and specialised meter for linear and rotating filling machines. The fully welded maintenance-free device with twin U-shape is particularly suitable for hygienic applications in the pharmaceutical or food and beverage industries. It can be equipped with DIN11864-2 hygienic flange connections, hygienic clamp connections or many other bespoke fittings according to customer specifications.

Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.

Twin bent tube design for process batching
No separate converter needed: Communication direct from meter
Excellent low flow stability, accuracy and repeatability
Stainless steel construction for hygienic or non-hygienic applications
Welded outer casing, sealed to IP67
Immunity to crosstalk: resistant to installation and process effects

Specifications

Depending on selected device configuration

General information

Product type	Flowmeter
Product family name	OPTIBATCH
Product positioning	For linear and rotating filling machines
Product variants	OPTIBATCH 4011 C – Compact version with integral converter electronics
Measurement principle	Coriolis
Measured media	Liquids

Operating conditions

Process pressure	max. 40 barg/ 580 psig
Process temperature	0…+100°C/ +32…+212°F

Materials

Measuring tube	Austenitic stainless steel (1.4404/316L)

Process connections

Hygienic connections	Clamp (DIN 32676): DN10, DN15, DN20, DN25 Clamp (ISO 2852): 25 Tri-Clamp: ½”, ¾”, 1″ Clamp (BS 4825): ¾” Threaded ferrule (DIN 11851): DN10, DN15, DN20, DN25 Flange with collar (DIN 11864-2): DN20 Threaded ferrule (SMS 1146): 25 mm IDF: 10A, 15A
