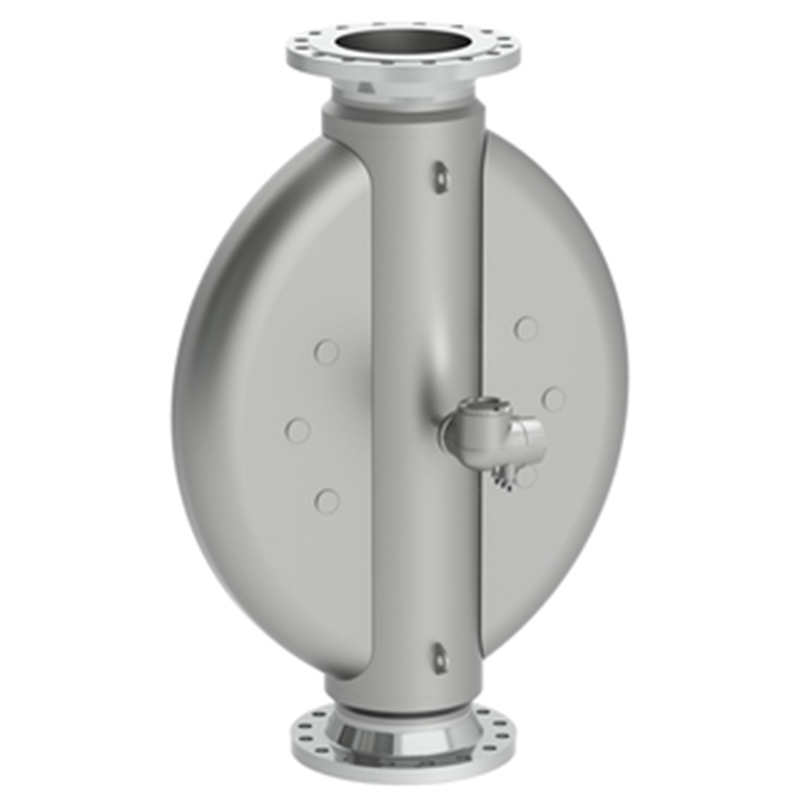

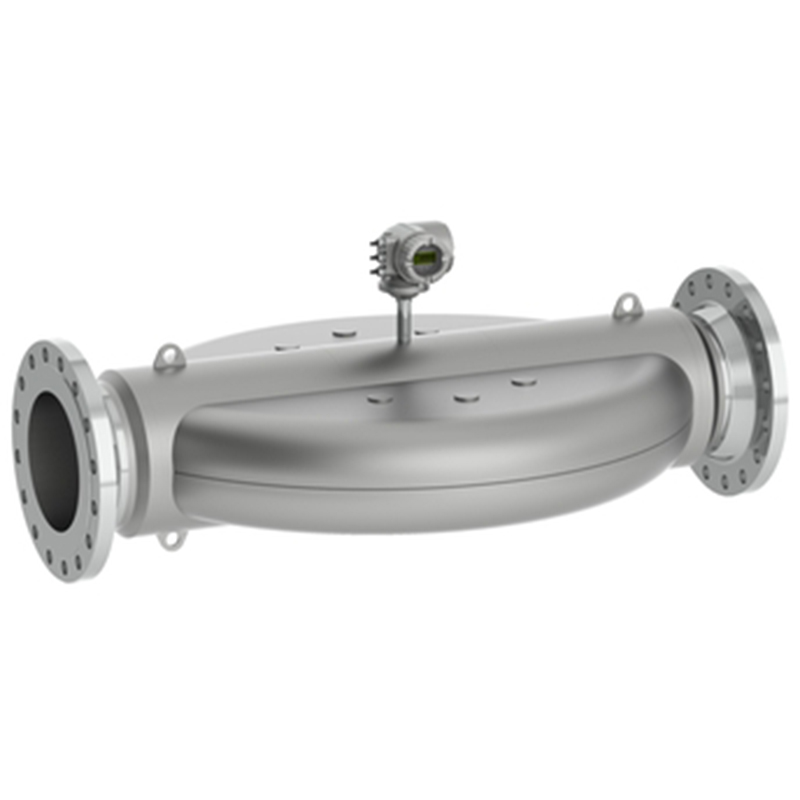

Endress+Hauser Proline Promass X 300 Coriolis flowmeter

Specifications

• Measuring principle

  Coriolis

• Product headline

  Highest capacity four-tube flowmeter with a compact, easily accessible transmitter.
  For highest flow rates and outstanding performance in on/offshore oil and gas applications.

• Sensor features

  Increased profit – single installation point providing premium accuracy for large quantities. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
  Nominal diameter: DN 300 to 400 (12 to 16″). Four-tube system with low pressure drop. Complete exterior design made of 1.4435 (316L).

• Transmitter features

  Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
  Compact dual-compartment housing with up to 3 I/Os.

• Nominal diameter range

  DN 300 to 400 (12 to 16″)

• Wetted materials

  Measuring tube: 1.4404 (316/316L)
  Connection: 1.4404 (316/316L)

• Measured variables

  Mass flow, density, temperature, volume flow, corrected volume flow (API tables), reference density, concentration

• Max. measurement error

  Mass flow (liquid): ±0.10 % (standard), 0.05 % (option)
  Volume flow (liquid): ±0.10 %
  Mass flow (gas): ±0.35 %
  Density (liquid): ±0.0005 g/cm³

• Measuring range

  0 to 4100 t/h (0 to 4520 tn. sh./h)

• Max. process pressure

  PN 100, Class 600

• Medium temperature range

  –50 to +180 °C (–58 to +356 °F)

• Ambient temperature range

  Standard: –40 to +60 °C (–40 to +140 °F)
  Option: –50 to +60 °C (–58 to +140 °F)

• Sensor housing material

  1.4404 (316L), highest corrosion resistance

• Transmitter housing material

  AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L

• Degree of protection

  IP66/67, type 4X enclosure

• Display/Operation

  4-line backlit display with touch control (operation from outside)
  Configuration via local display and operating tools possible
  Remote display available”

• Outputs

  3 outputs:
  4-20 mA HART (active/passive)
  4-20 mA WirelessHART
  4-20 mA (active/passive)
  Pulse/frequency/switch output (active/passive)
  Double pulse output (active/passive)
  Relay output

• Inputs

  Status input
  4-20 mA input

• Digital communication

  HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

• Power supply

  DC 24 V
  AC 100 to 230 V
  AC 100 to 230 V / DC 24 V (non-hazardous area)

• Hazardous area approvals

  ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC

• Product safety

  CE, C-tick, EAC marking

• Functional safety

  Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
  MI-005 Liquids other than water (Hydrocarbons), LPG, cryogenic
  MI-002, PTB

• Marine approvals and certificates

  LR approval, DNV approval, ABS approval, BV approval, CCS approval

• Pressure approvals and certificates

  PED, CRN

• Material certificates

  3.1 material
  NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK
