Product Details
Mass flow (liquid): ±0.5%
0 to 75 kg/h (0 to 165,3 lb/min)
3 to 60°C (37.4 to 140°F)
6 bar (87 psi)
Measuring tubes: Stainless steel 1.4435, 316L
Hose connection nipple: Makrolon Rx 1805 polycarbonate

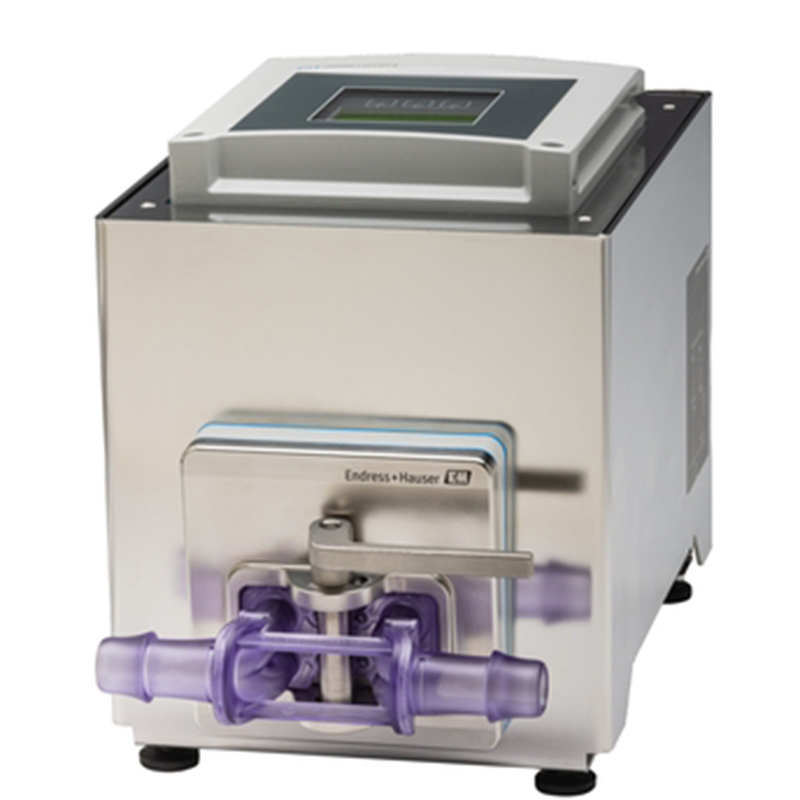

Coriolis
Single-use specialist for Biotech applications, with a remote version with up to 4 I/Os.
Modern fieldbus communication protocols (2-wire).
Highest measurement performance for liquids in single-use processes for the Life Sciences Industry.
One sensor fits all DN – single variant with 4 disposable line sizes provides highest turndown ratio . One-hand mounting of disposable – easy
commissioning due to intuitive clamping mechanism. Mounting angle – self drainabillity or air bubble escape.
Disposable made of 1.4435 (316L) and polycarbonate. Fully traceable cGMP compliance. One sensor fits four line sizes: ¹⁄₈ to 1″.
Full access to process and diagnostic information –
numerous, freely combinable I/Os and Ethernet. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
Remote version with up to 4 I/Os. Backlit display with touch control and WLAN access. Standard cable between sensor and transmitter.
¹⁄₈” to 1″
Measuring tubes: Stainless steel 1.4435, 316L
Hose connection nipple: Makrolon Rx 1805 polycarbonate
Mass, density, temperature
Mass flow (liquid): ±0.5%
0 to 75 kg/h (0 to 165,3 lb/min)
6 bar (87 psi)
3 to 60°C (37.4 to 140°F)
5 to 40°C (41 to 104°F)
Aluminum, AlSi10Mg, coated
Transmitter: IP66/67, Type 4X enclosure
Sensor: IP54
4-line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible
“4 outputs:
4-20 mA HART (active/passive)
4-20 mA WirelessHART
4-20 mA (active/passive)
Pulse/frequency/switch output (active/passive)
Double pulse output (active/passive)
Relay output”
Status input
4-20 mA input
Modbus RS485, PROFINET over Ethernet-APL
AC 100 to 230 V / DC 24 V (non-hazardous area)
CE, C-tick, EAC marking
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
cGMP compliance, ASME BPE, BPOG, FDA
