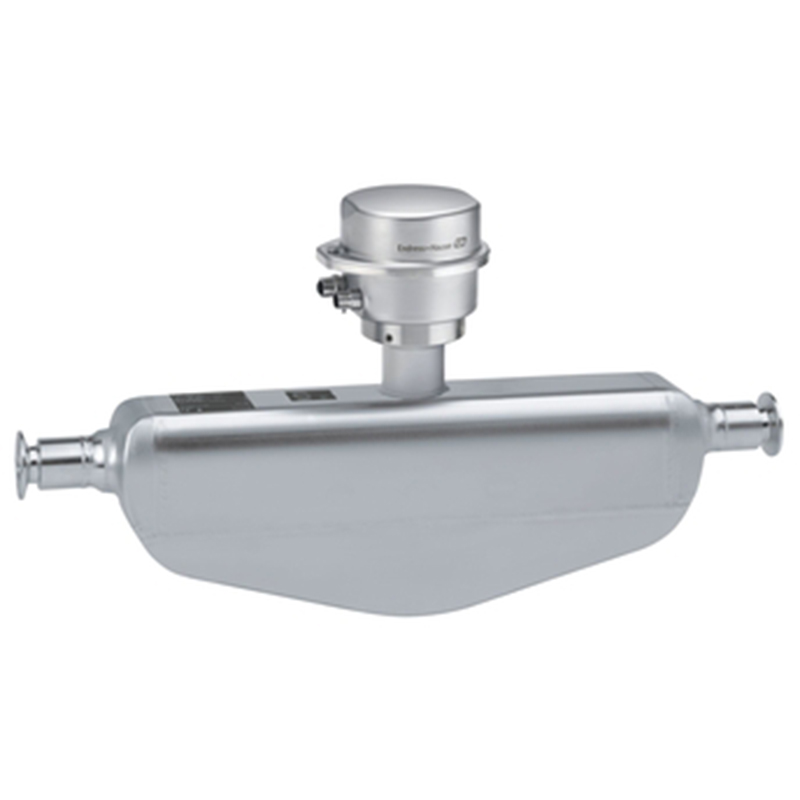

Endress+Hauser Proline Promass P 100 Coriolis flowmeter

Specifications

• Measuring principle

  Coriolis

• Product headline

  Specialist for life sciences with an ultra-compact transmitter.
  Dedicated to applications under sterile conditions in the life sciences industry.

• Sensor features

  Highest process quality – fully compliant to industry requirements. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
  ASME BPE, 3‐A and EHEDG conform & low delta ferrite. Electropolished measuring tube in 1.4435 (316L). Fast recovery from CIP/SIP.

• Transmitter features

  Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology.
  Robust, ultra-compact transmitter housing. Highest degree of protection: IP69. Local display available.

• Nominal diameter range

  DN 8 to 50 (⅜ to 2″)

• Wetted materials

  Measuring tube: 1.4435 (316L)
  Connection: 1.4435 (316L); 1.4404 (316/316L)

• Measured variables

  Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

• Max. measurement error

  Mass flow (liquid): ±0.1 %
  Volume flow (liquid): ±0.1 %
  Density (liquid): ±0.0005 g/cm³

• Measuring range

  0 to 70 000 kg/h (0 to 2570 lb/min)

• Max. process pressure

  PN 63, Class 300, 40K

• Medium temperature range

  Standard: –50 to +150 °C (–58 to +302 °F)
  Option: –50 to +205 °C (–58 to +401 °F)

• Ambient temperature range

  Standard: –40 to +60 °C (–40 to +140 °F)
  Option: –50 to +60 °C (–58 to +140 °F)

• Sensor housing material

  1.4301 (304), corrosion resistant

• Transmitter housing material

  Compact: AlSi10Mg, coated
  Compact/ultra‐compact: 1.4301 (304)

• Degree of protection

  Standard: IP66/67, type 4X enclosure
  Option: IP69

• Display/Operation

  4‐line backlit display available (no local operation)
  Configuration via web browser and operating tools possible

• Outputs

  4‐20 mA HART (active)
  Pulse/frequency/switch output (passive)

• Inputs

  None

• Digital communication

  HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET

• Power supply

  DC 20 to 30 V

• Hazardous area approvals

  ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC

• Product safety

  CE, C-Tick, EAC marking

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Verification: Heartbeat Technology complies with requirements for traceable verification according to ISO 9001:2008, chapter 7.6. a (TUV attestation)

• Pressure approvals and certificates

  PED, CRN

• Material certificates

  3.1 material

• Hygienic approvals and certificates

  3-A, EHEDG, ASME BPE, ISPE, cGMP
