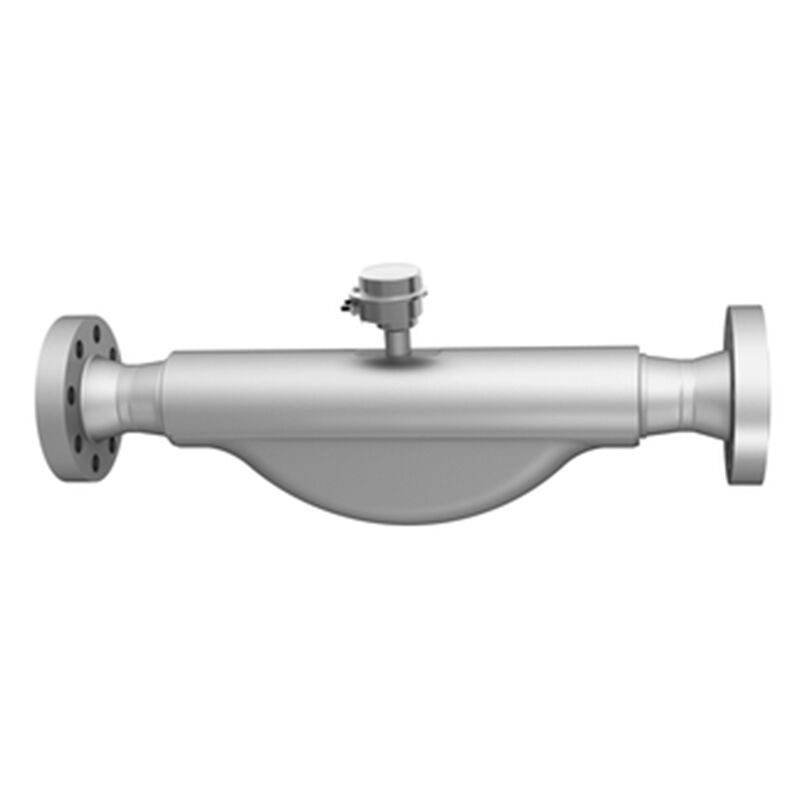

Endress+Hauser Proline Promass O 100 Coriolis flowmeter

Specifications

• Measuring principle

  Coriolis

• Product headline

  Robust high-pressure flowmeter with an ultra-compact transmitter.
  For premium accuracy at highest process pressures, fully suitable for offshore conditions.

• Sensor features

  Maximum safety – highest resistance to stress corrosion cracking. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
  Measuring tube in 25Cr Duplex, 1.4410 (UNS S32750). Process pressure up to PN 250 (Class 1500). Nominal diameter: DN 80 to 150 (3 to 6″).

• Transmitter features

  Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server.
  Robust, ultra-compact transmitter housing. Highest degree of protection: IP69. Local display available.

• Nominal diameter range

  DN 80 to 150 (3 to 6″)

• Wetted materials

  Measuring tube: 25Cr duplex (Super Duplex), 1.4410 (UNS S32750)
  Connection: 25Cr duplex (Super Duplex), 1.4410 (F53)

• Measured variables

  Mass flow, density, temperature, volume flow, corrected volume flow (API tables), reference density, concentration

• Max. measurement error

  Mass flow (liquid): ±0.1 (standard), 0.05 % (option)
  Volume flow (liquid): ±0.1 %
  Mass flow (gas): ±0.35 %
  Density (liquid): ±0.0005 g/cm³

• Measuring range

  0 to 800 000 kg/h (0 to 29 400 lb/min)

• Max. process pressure

  PN 250, Class 1500

• Medium temperature range

  –40 to +205 °C (–40 to +401 °F)

• Ambient temperature range

  Standard: –40 to +60 °C (–40 to +140 °F)
  Option: –50 to +60 °C (–58 to +140 °F)

• Sensor housing material

  1.4404 (316L), highest corrosion resistance

• Transmitter housing material

  Compact: AlSi10Mg, coated
  Compact/ultra‐compact: 1.4404 (316L)

• Degree of protection

  Standard: IP66/67, type 4X enclosure
  Option: IP69

• Display/Operation

  4‐line backlit display available (no local operation)
  Configuration via web browser and operating tools possible

• Outputs

  4‐20 mA HART (active)
  Pulse/frequency/switch output (passive)

• Inputs

  None

• Digital communication

  HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET

• Power supply

  DC 20 to 30 V

• Hazardous area approvals

  ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC

• Product safety

  CE, C-Tick, EAC marking

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025),
  Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

• Marine approvals and certificates

  LR approval, DNV approval, ABS approval, BV approval, CCS approval

• Pressure approvals and certificates

  PED, CRN, AD 2000

• Material certificates

  3.1 material
  NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK
