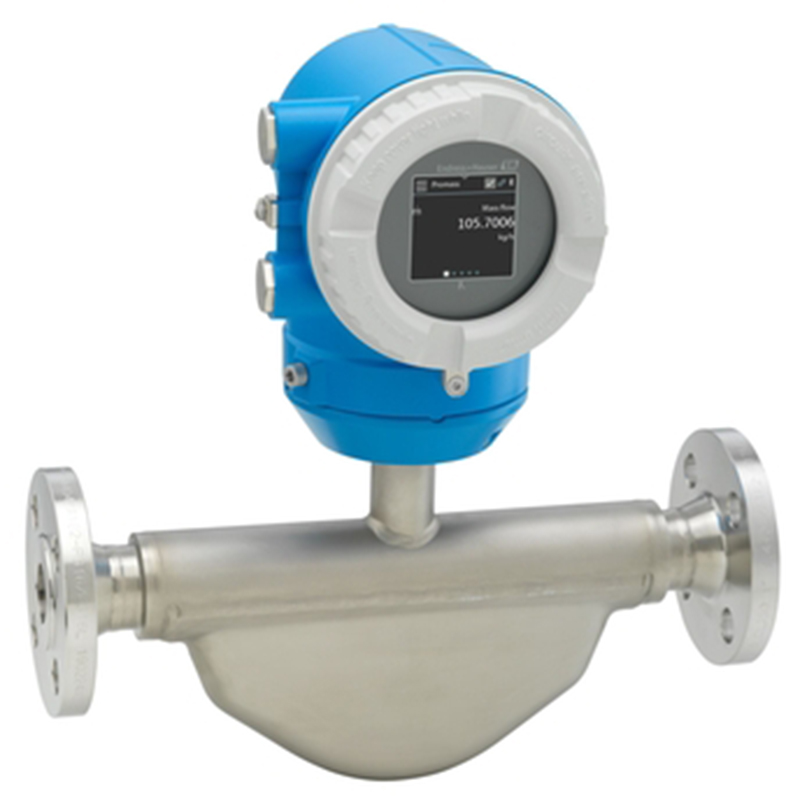

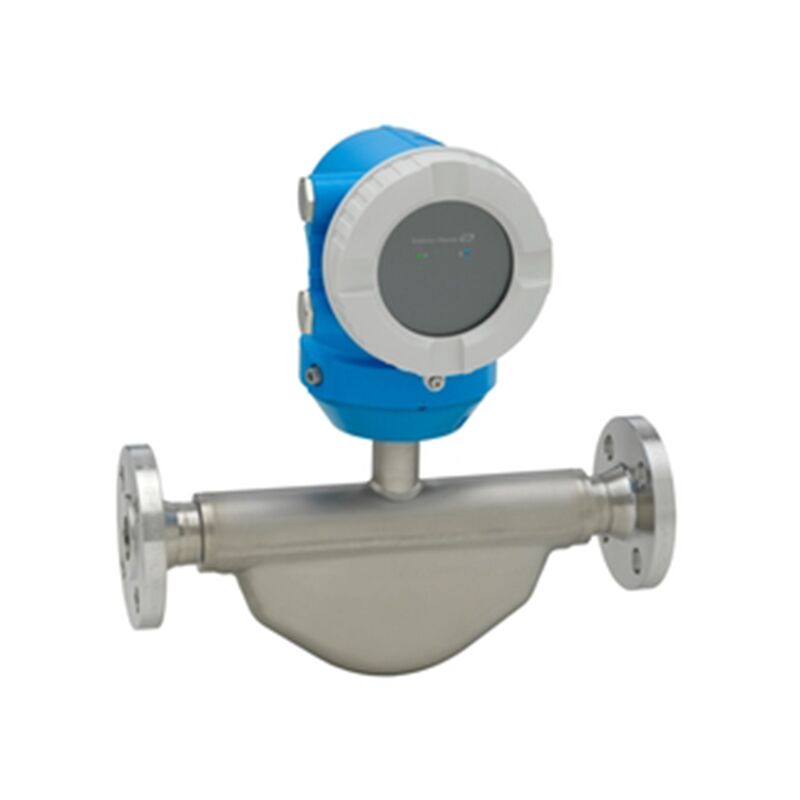

Endress+Hauser Proline Promass K 10 Coriolis flowmeter

Specifications

• Measuring principle

  Coriolis

• Product headline

  Flowmeter with minimized total cost of ownership with easy-to-use operation concept.
  Measurement of liquids and gases in utility processes and basic applications.

• Sensor features

  Cost-effective general-purpose device – alternative to mechanical flowmeters. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space-saving installation – no in-/outlet run needs.
  Compact dual-tube sensor. Medium temperature up to +150 °C (+302 °F). Process pressure up to 100 bar (1450 psi).

• Transmitter features

  Optimum usability – display with touch screen (HART and Modbus RS485 communication only) or operation with mobile devices and SmartBlue app. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology.
  System integration with HART, Modbus RS485, IO-Link. Flexible operation with app and optional display.

• Nominal diameter range

  DN 8 to 80 (⅜ to 3″)

• Wetted materials

  Measuring tube: 1.4539 (904L)
  Connection: 1.4404 (316/316L)

• Measured variables

  Mass flow, temperature, Density (option), volume flow, corrected volume flow

• Max. measurement error

  Mass flow (liquid): ±0.5 % (standard), ±0.15 % (option)
  Mass flow (gas): ±0.75%

• Measuring range

  0 to 180 000 kg/h (0 to 6615 lb/min)

• Max. process pressure

  PN 40, Class 300, 40K

• Medium temperature range

  –40 to +150 °C (–40 to +302 °F)

• Ambient temperature range

  Standard: –20 to +60 °C (–4 to +140 °F)

• Sensor housing material

  Stainless steel 1.4301 (304)

• Transmitter housing material

  AlSi10Mg, coated

• Degree of protection

  Standard: IP66/67, Type 4X enclosure

• Display/Operation

  2.4″ LCD display with touch & auto rotate; Configuration and operation via SmartBlue App (Bluetooth) possible

• Outputs

  4-20 mA HART (active/passive), Pulse/frequency/switch output
  Modbus RS485, 4-20 mA

• Digital communication

  HART, MODBUS RS485, IO-Link

• Power supply

  DC 24 V
  AC 100 to 230 V
  AC 100 to 230 V / DC 24 V (non-hazardous area)

• Hazardous area approvals

  ATEX
  IECEx
  cCSAus
  EAC
  NEPSI
  INMETRO
  IND Ex
  JPN
  UK Ex
  KC

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

• Pressure approvals and certificates

  CRN, PED

• Material certificates

  3.1 material

• Hygienic approvals and certificates

  EC 1935, FDA, GB4806, cGMP, 3-A
