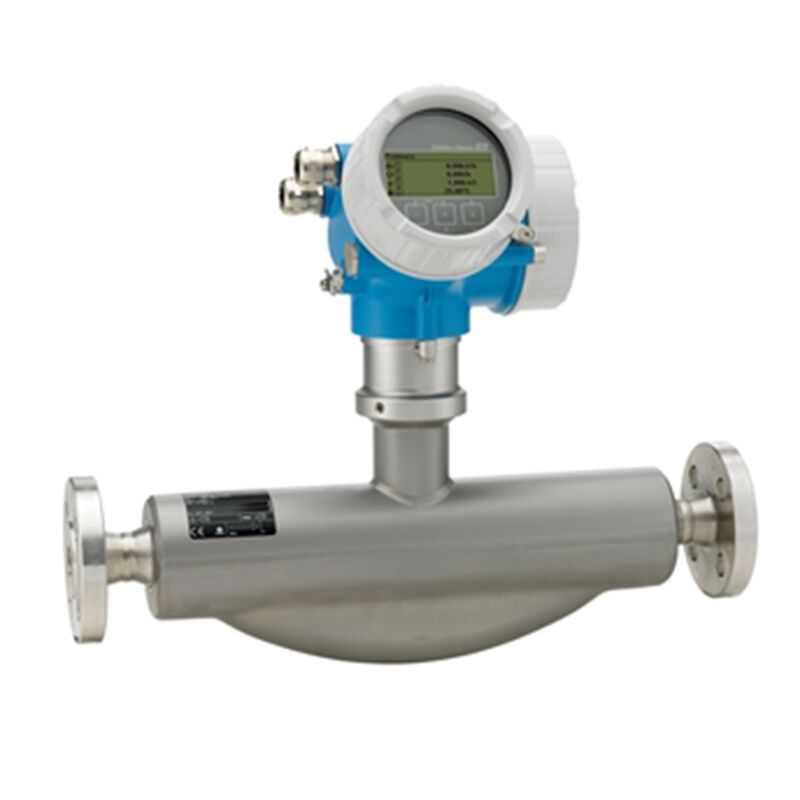

Endress+Hauser Proline Promass F 200 Coriolis flowmeter

Specifications

• Measuring principle

  Coriolis

• Product headline

  Robust flowmeter with genuine loop-powered technology.
  Highest measurement performance for liquids and gases in a wide range of applications.

• Sensor features

  Highest process safety – immune to fluctuating and harsh environments. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
  Mass flow: measured error ±0.1 %. Medium temperature up to +205 °C (+401 °F). Nominal diameter: DN 8 to 80 (³⁄₈ to 3″).

• Transmitter features

  Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology.
  Loop-powered technology. Robust dual-compartment housing. Plant safety: worldwide approvals (SIL, Haz. area).

• Nominal diameter range

  DN 8 to 80 (⅜ to 3″)

• Wetted materials

  Measuring tube: 1.4539 (904L); 1.4404; Alloy C22, 2.4602 (UNS N06022)
  Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)

• Measured variables

  Mass flow, density, temperature, volume flow, corrected volume flow, reference density

• Max. measurement error

  Mass flow (liquid): ±0.1 %
  Volume flow (liquid): ±0.1 %
  Mass flow (gas): ±0.25 % Density (liquid): ±0.0005 g/cm³

• Measuring range

  0 to 70 000 kg/h (0 to 2570 lb/min)

• Max. process pressure

  PN 100, Class 600, 63K

• Medium temperature range

  Standard: –50 to +150 °C (–58 to +302 °F)
  Option: –50 to +205 °C (–58 to +401 °F)

• Ambient temperature range

  –40 to +60 °C (–40 to +140 °F)

• Sensor housing material

  1.4301/1.4307 (304L), corrosion resistant

• Transmitter housing material

  AlSi10Mg, coated, 1.4404 (316L)

• Degree of protection

  IP66/67, type 4X enclosure

• Display/Operation

  4‐line backlit display with touch control
  (operation from outside)
  Configuration via local display and operating tools possible
  Remote display available

• Outputs

  4‐20 mA HART (passive)
  4‐20 mA (passive)
  Pulse/frequency/switch output (passive)

• Inputs

  None

• Digital communication

  HART, PROFIBUS PA, FOUNDATION Fieldbus

• Power supply

  DC 18 to 35 V (4‐20 mA HART with/without
  pulse/frequency/switch)
  DC 18 to 30 V (20 mA HART, 4‐20 mA)
  DC 9 to 32 V (PROFIBUS PA)

• Hazardous area approvals

  ATEX, IECEx, cCSAus, INMETRO, NEPSI, JPN, UK Ex

• Product safety

  CE, C-TICK

• Functional safety

  Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

• Pressure approvals and certificates

  PED, CRN, AD 2000

• Material certificates

  3.1 material
  NACE MR0175/MR0103, PMI; welding test acc. to EN ISO, ASME, NORSOK

• Hygienic approvals and certificates

  3-A, EHEDG, cGMP
