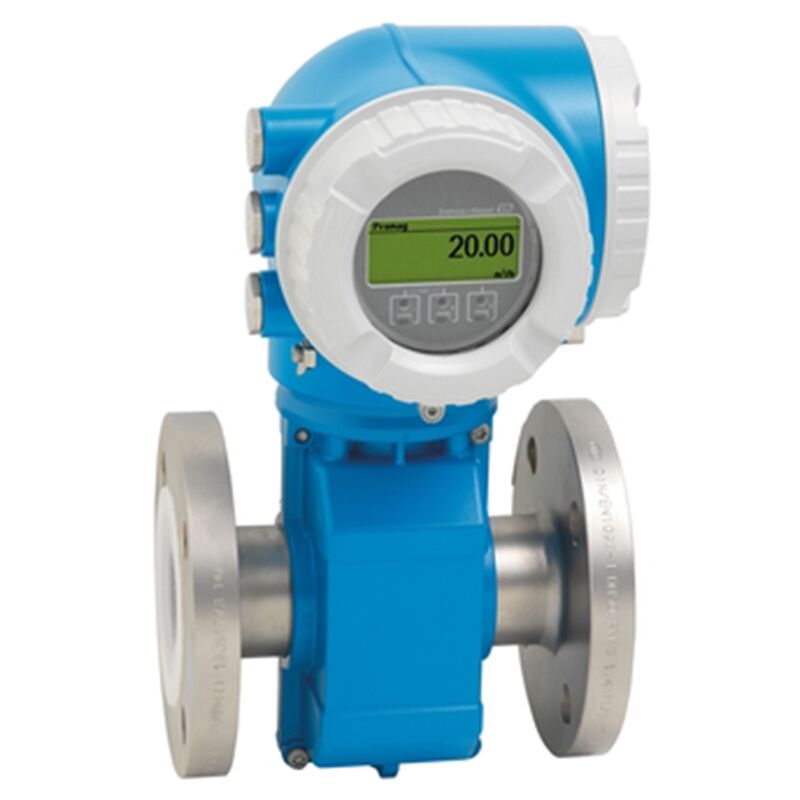

Endress+Hauser Proline Promag P 300 electromagnetic flowmeter

Specifications

• Measuring principle

  Electromagnetic

• Product headline

  High-temperature flowmeter for process applications with a compact, easily accessible transmitter.
  Dedicated to chemical and process applications with corrosive liquids and high medium temperatures.

• Sensor features

  Diverse applications – wide variety of wetted materials. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.
  Nominal diameter: max. DN 600 (24″). All common Ex approvals.

• Transmitter features

  Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.
  Liner made of PTFE or PFA. Compact dual-compartment housing with up to 3 I/Os. Backlit display with touch control and WLAN access. Remote display available.

• Nominal diameter range

  DN 15 to 600 (½ to 24″)

• Wetted materials

  Liner: PFA; PTFE
  Electrodes: 1.4435 (F316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium

• Measured variables

  Volume flow, conductivity, mass flow

• Max. measurement error

  Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
  Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s), Flat Spec

• Measuring range

  4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min)

• Max. process pressure

  PN 40, Class 300, 20K

• Medium temperature range

  Liner material PFA: –20 to +150 °C (–4 to +302 °F)
  Liner material PFA high-temperature: –20 to +180 °C (–4 to +356 °F)
  Liner material PTFE: –40 to +130 °C (–40 to +266 °F)

• Ambient temperature range

  Flange material carbon steel: –10 to +60 °C (+14 to +140 °F)
  Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)

• Sensor housing material

  DN 15 to 300 (½ to 12″”): AlSi10Mg, coated
  DN 350 to 600 (14 to 24″”): Carbon steel with protective varnish

• Transmitter housing material

  AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design

• Degree of protection

  Standard: IP66/67, Type 4X enclosure

• Display/Operation

  4-line backlit display with touch control (operation from outside)
  Configuration via local display and operating tools possible
  Remote display available

• Outputs

  3 outputs:
  4-20 mA HART (active/passive)
  4-20 mA WirelessHART
  4-20 mA (active/passive)
  Pulse/frequency/switch output (active/passive)
  Double pulse output (active/passive)
  Relay output

• Inputs

  Status input
  4-20 mA input

• Digital communication

  HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

• Power supply

  DC 24 V
  AC 100 to 230 V
  AC 100 to 230 V / DC 24 V (non-hazardous area)

• Hazardous area approvals

  ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC; JPN, UK Ex, KC

• Product safety

  CE, C-tick, EAC marking

• Functional safety

  Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

• Marine approvals and certificates

  LR approval, DNV approval, ABS approval, BV approval

• Pressure approvals and certificates

  PED, CRN

• Material certificates

  3.1 material

• Hygienic approvals and certificates

  ACS, NSF 61, WRAS
