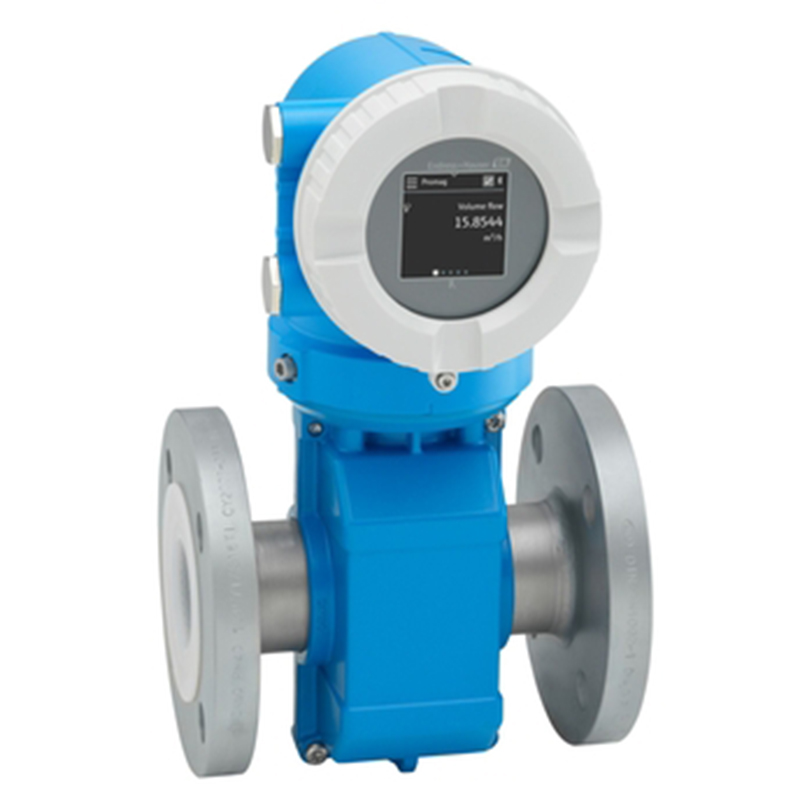

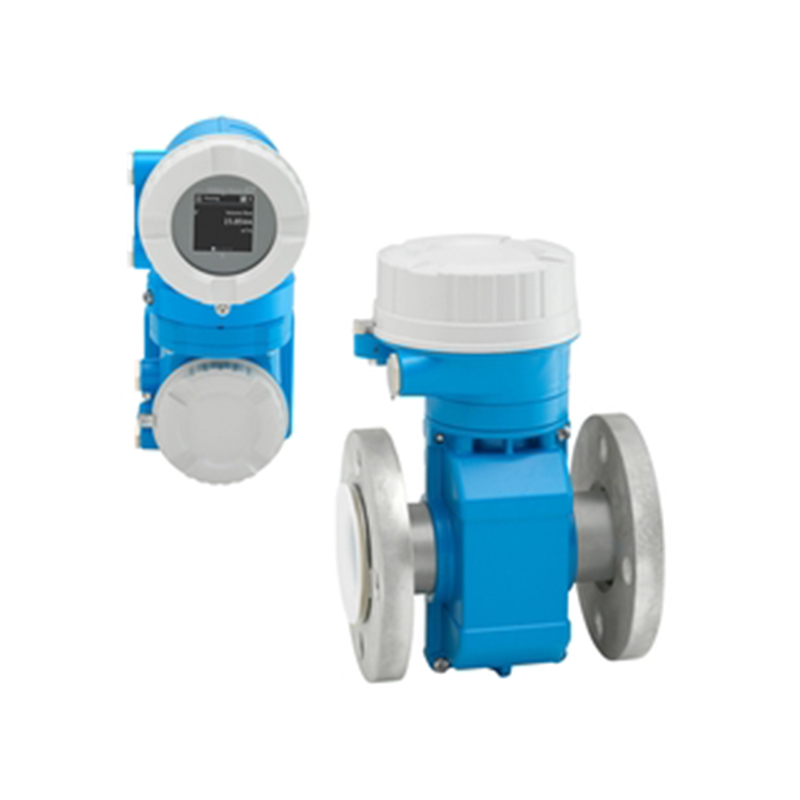

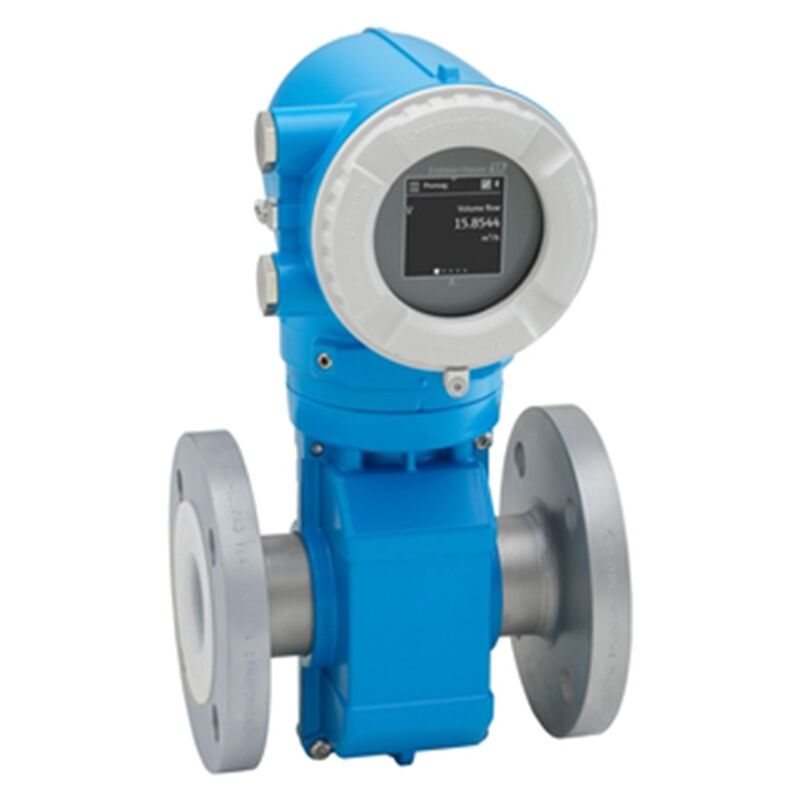

Endress+Hauser Proline Promag P 10 electromagnetic flowmeter

Specifications

• Measuring principle

  Electromagnetic

• Product headline

  Flowmeter for basic process applications with easy-to-use operation concept.
  Dedicated to chemical and process applications with corrosive liquids.

• Sensor features

  Diverse applications – wide variety of wetted materials. Energy-saving flow measurement – no pressure loss due to cross section constriction. Maintenance-free – no moving parts.
  Nominal diameter: max. DN 600 (24″). All common Ex approvals. Liner made of PTFE or PFA.

• Transmitter features

  Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology.
  System integration with HART, Modbus RS485. Flexible operation with app and optional display.

• Nominal diameter range

  DN 15 to 600 (½ to 24″)

• Wetted materials

  Liner: PFA; PTFE
  Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium

• Measured variables

  Volume flow, conductivity, mass flow

• Max. measurement error

  Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
  Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)

• Measuring range

  4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min)

• Max. process pressure

  PN 40, Class 300, 20K

• Medium temperature range

  Liner material PFA: –20 to +150 °C (–4 to +302 °F)
  Liner material PTFE: –40 to +130 °C (–40 to +266 °F)

• Ambient temperature range

  Flange material carbon steel: –10 to +60 °C (+14 to +140 °F)
  Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)

• Sensor housing material

  DN 15 to 300 (½ to 12″”): AlSi10Mg, coated
  DN 350 to 600 (14 to 24″”): Carbon steel with protective varnish

• Transmitter housing material

  AlSi10Mg, coated

• Degree of protection

  Standard: IP66/67, Type 4X enclosure

• Display/Operation

  2.4″ LCD display with touch & auto rotate; Configuration and operation via SmartBlue App (Bluetooth) possible

• Outputs

  4-20 mA HART (active/passive), Pulse/frequency/switch output
  Modbus RS485, 4-20 mA

• Digital communication

  HART, MODBUS RS485

• Power supply

  DC 24 V
  AC 100 to 230 V
  AC 100 to 230 V / DC 24 V (non-hazardous area)

• Hazardous area approvals

  ATEX, IECEx, cCSAus, EAC, NEPSI, INMETRO, IND Ex, KC, JPN, UK Ex

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

• Pressure approvals and certificates

  PED, CRN

• Material certificates

  3.1 material

• Hygienic approvals and certificates

  Driking water approvals: ACS; NSF61, WRAS
