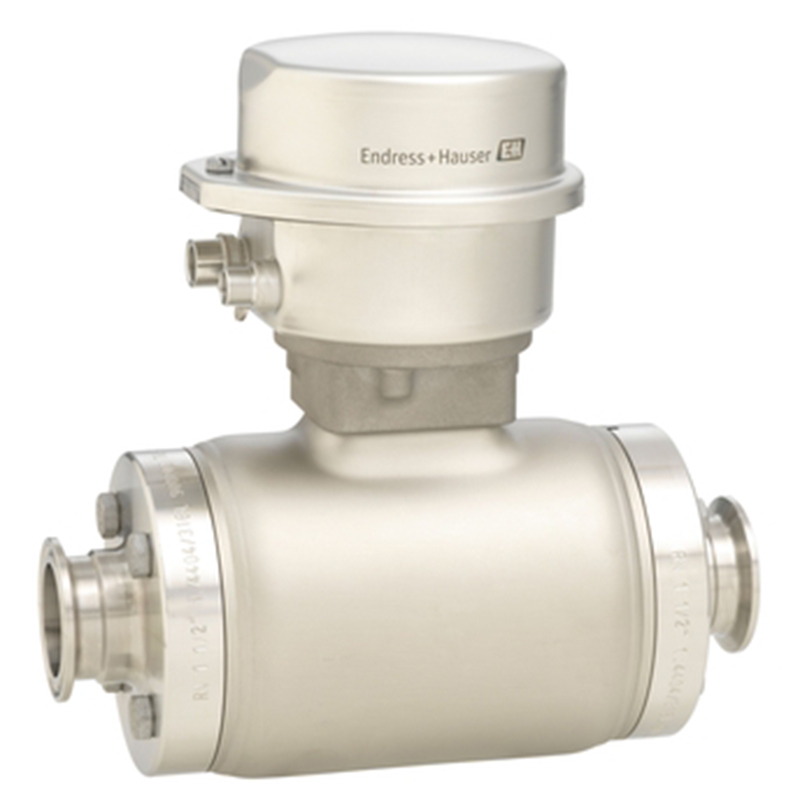

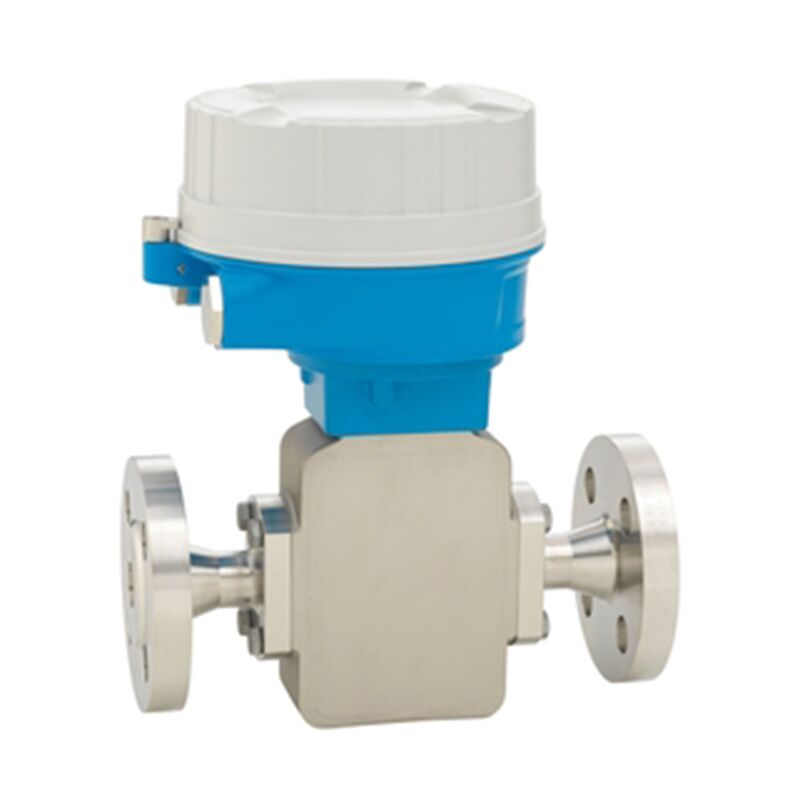

Endress+Hauser Proline Promag H 500 electromagnetic flowmeter

Specifications

• Measuring principle

  Electromagnetic

• Product headline

  Specialist for hygienic applications, as remote version with up to 4 I/Os.
  Dedicated to demanding applications in the food and beverage as well as in life sciences industries.

• Sensor features

  Flexible installation concept – numerous hygienic process connections. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.
  Liner made of PFA. Sensor housing made of stainless steel (3-A, EHEDG). Wetted materials CIP, SIP cleanable.

• Transmitter features

  Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses. Reduced complexity and variety – freely configurable I/O functionality. Integrated verification – Heartbeat Technology.

• Nominal diameter range

  DN 2 to 150 (¹⁄₁₂ to 6″)

• Wetted materials

  Liner: PFA
  Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
  Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
  Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
  Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum

• Measured variables

  Volume flow, temperature, conductivity, mass flow, corrected volume flow, corrected conductivity

• Max. measurement error

  Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
  Volume flow (option) ±0.2 % o.r. ± 2 mm/s (0.08 in/s)

• Measuring range

  0.06 dm³/min to 600 m³/h (0.015 gal/min to 2 650 gal/min)

• Max. process pressure

  PN 40, Class 150, 20K

• Medium temperature range

  –20 to +150 °C (–4 to +302 °F)

• Ambient temperature range

  –40 to +60 °C (–40 to +140 °F)

• Sensor housing material

  1.4301 (304), corrosion resistant
  Sensor connection housing (standard): AlSi10Mg, coated
  Sensor connection housing (option): 1.4301 (304); 1.4409 (CF3M), similar to 316L

• Transmitter housing material

  AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonat

• Degree of protection

  Sensor remote version (standard): IP66/67, type 4X enclosure
  Sensor remote version (option): IP69. Transmitter remote version: IP66/67, Type 4X enclosure

• Display/Operation

  4-line backlit display with touch control (operation from outside)
  Configuration via local display and operating tools possible

• Outputs

  4 outputs:
  4-20 mA HART (active/passive)
  4-20 mA (active/passive)
  Pulse/frequency/switch output (active/passive)
  Relay output

• Inputs

  Status input
  4-20 mA input

• Digital communication

  HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

• Power supply

  DC 24 V
  AC 100 to 230 V
  AC 100 to 230 V / DC 24 V (non-hazardous area)

• Hazardous area approvals

  ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC; JPN, UK Ex, KC

• Product safety

  CE, C-tick, EAC marking

• Functional safety

  Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

• Marine approvals and certificates

  LR approval, DNV approval, ABS approval, BV approval

• Pressure approvals and certificates

  PED, CRN

• Material certificates

  3.1 material

• Hygienic approvals and certificates

  EHEDG, 3-A, liner and seals acc. to FDA, cGMP
