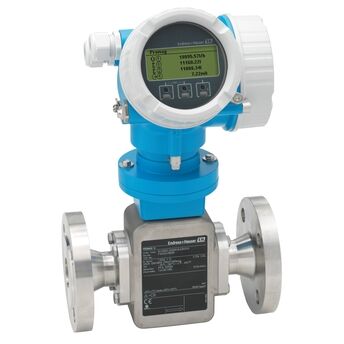

Endress+Hauser Proline Promag H 200 electromagnetic flowmeter

Specifications

• Measuring principle

  Electromagnetic

• Product headline

  Flowmeter for smallest flow rates with genuine loop-powered technology.
  Dedicated to the measurement of the smallest flow quantities.

• Sensor features

  Flexible installation concept – numerous process connections. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.
  Liner made of PFA. Sensor housing made of stainless steel. Various electrode materials available.

• Transmitter features

  Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology.
  Loop-powered technology. Robust dual-compartment housing. Plant safety: worldwide approvals (SIL, Haz. area).

• Nominal diameter range

  DN 2 to 25 (¹⁄₁₂ to 1″)

• Wetted materials

  Liner: PFA
  Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
  Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
  Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
  Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum

• Measured variables

  Volume flow, mass flow

• Max. measurement error

  Volume flow: ±0.5 % o.r. ± 2 mm/s (0.08 in/s)

• Measuring range

  0.06 dm³/min to 300 m³/h (0.015 to 80 gal/min)

• Max. process pressure

  PN 40, Class 150, 20K

• Medium temperature range

  –20 to +150 °C (–4 to +302 °F)

• Ambient temperature range

  –40 to +60 °C (–40 to +140 °F)

• Sensor housing material

  1.4301 (304), corrosion resistant

• Transmitter housing material

  AlSi10Mg, coated

• Degree of protection

  IP66/67, type 4X enclosure

• Display/Operation

  4‐line backlit display with touch control (operation from outside)
  Configuration via local display and operating tools possible
  Remote display available

• Outputs

  4‐20 mA HART (passive)
  Pulse/frequency/switch output (passive)

• Inputs

  None

• Digital communication

  HART, PROFIBUS PA, FOUNDATION Fieldbus

• Power supply

  DC 18 to 35 V (4‐20 mA HART with/without pulse/frequency/switch output)

• Hazardous area approvals

  ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC, JPN, UK Ex

• Product safety

  CE, C-Tick

• Functional safety

  Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

• Pressure approvals and certificates

  CRN

• Material certificates

  3.1 material
