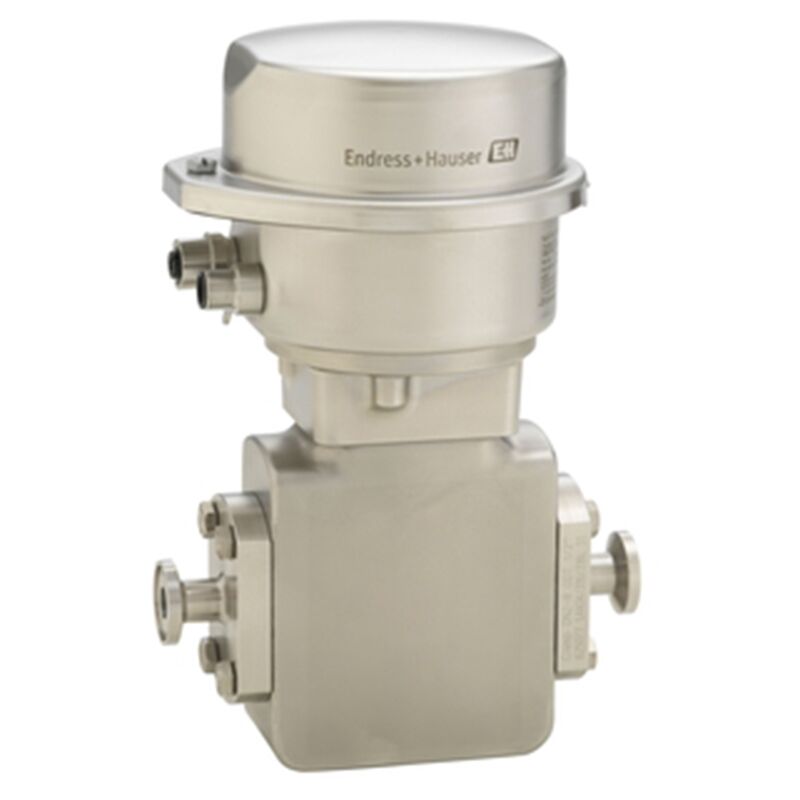

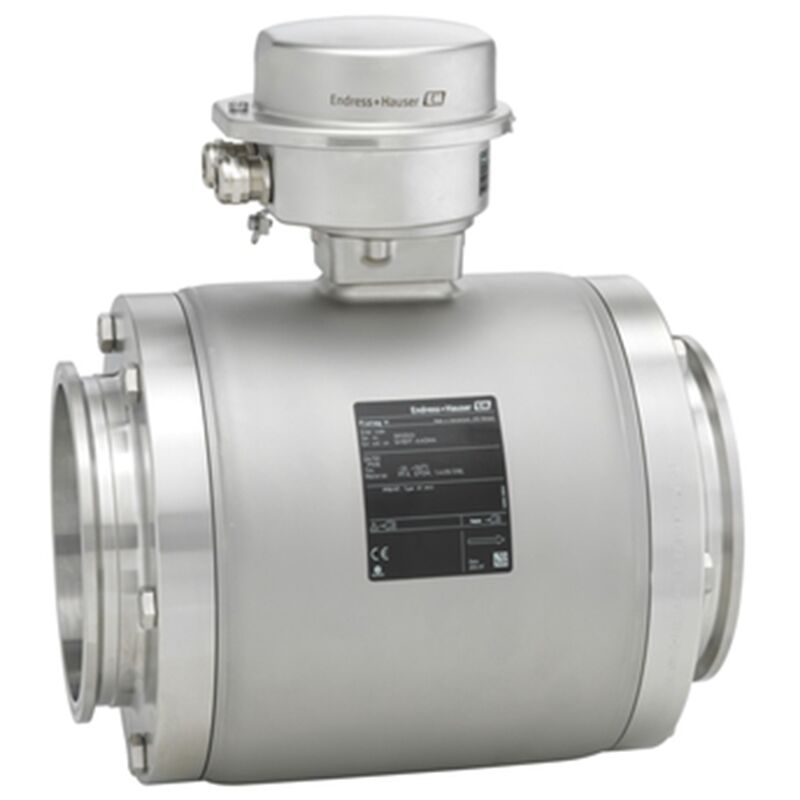

Endress+Hauser Proline Promag H 100 electromagnetic flowmeter

Specifications

• Measuring principle

  Electromagnetic

• Product headline

  Specialist for hygienic applications with an ultra-compact transmitter.
  Multivariable measurement of flow, temperature and conductivity.
  Dedicated to demanding applications in the food and beverage as well as in life sciences industries.

• Sensor features

  Flexible installation concept – numerous hygienic process connections. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.
  Integrated temperature measurement. Sensor housing made of stainless steel (3-A, EHEDG). Wetted materials CIP, SIP cleanable.

• Transmitter features

  Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology.
  Robust, ultra-compact transmitter housing. High degree of protection: IP69. Local display available.

• Nominal diameter range

  DN 2 to 150 (¹⁄₁₂ to 6″)

• Wetted materials

  Liner: PFA
  Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
  Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
  Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
  Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum

• Measured variables

  Volume flow, temperature, conductivity, mass flow, corrected volume flow, corrected
  conductivity

• Max. measurement error

  Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
  Volume flow (option) ±0.2 % o.r. ± 2 mm/s (0.08 in/s)

• Measuring range

  0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min)

• Max. process pressure

  PN 40, Class 150, 20K

• Medium temperature range

  –20 to +150 °C (–4 to +302 °F)

• Ambient temperature range

  –40 to +60 °C (–40 to +140 °F)

• Sensor housing material

  1.4301 (304), corrosion resistant

• Transmitter housing material

  Compact: AlSi10Mg, coated
  Compact/ultra‐compact: 1.4301 (304)

• Degree of protection

  Standard: IP66/67, type 4X enclosure
  Option: IP69

• Display/Operation

  4‐line backlit display available (no local operation)
  Configuration via web browser and operating tools possible

• Outputs

  4‐20 mA HART (active)
  Pulse/frequency/switch output (passive)

• Inputs

  None

• Digital communication

  HART, PROFIBUS DP, Modbus RS485, EtherNet/IP, PROFINET

• Power supply

  DC 20 to 30 V

• Hazardous area approvals

  ATEX, IECEx, cCSAus, INMETRO, EAC

• Product safety

  CE, C-tick

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Verification: Heartbeat Technology complies with requirements for traceable verification according to ISO 9001:2008, chapter 7.6. a (TUV attestation)

• Marine approvals and certificates

  LR approval, DNV approval, ABS approval, BV approval

• Pressure approvals and certificates

  PED, CRN

• Material certificates

  3.1 material

• Hygienic approvals and certificates

  Sanitary approval: EHEDG, 3-A, liner and seals acc. to FDA, cGMP
