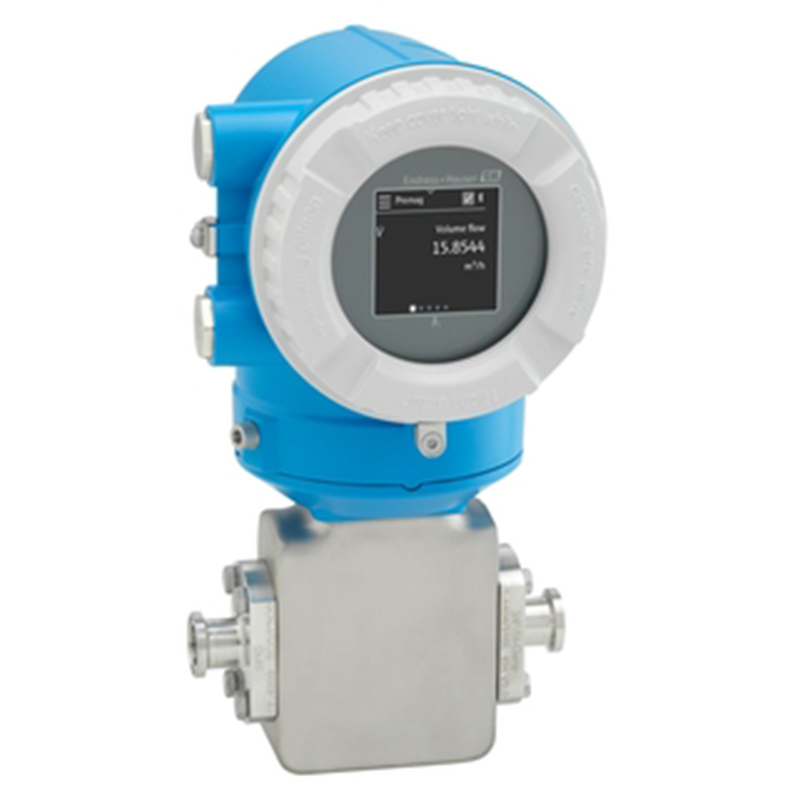

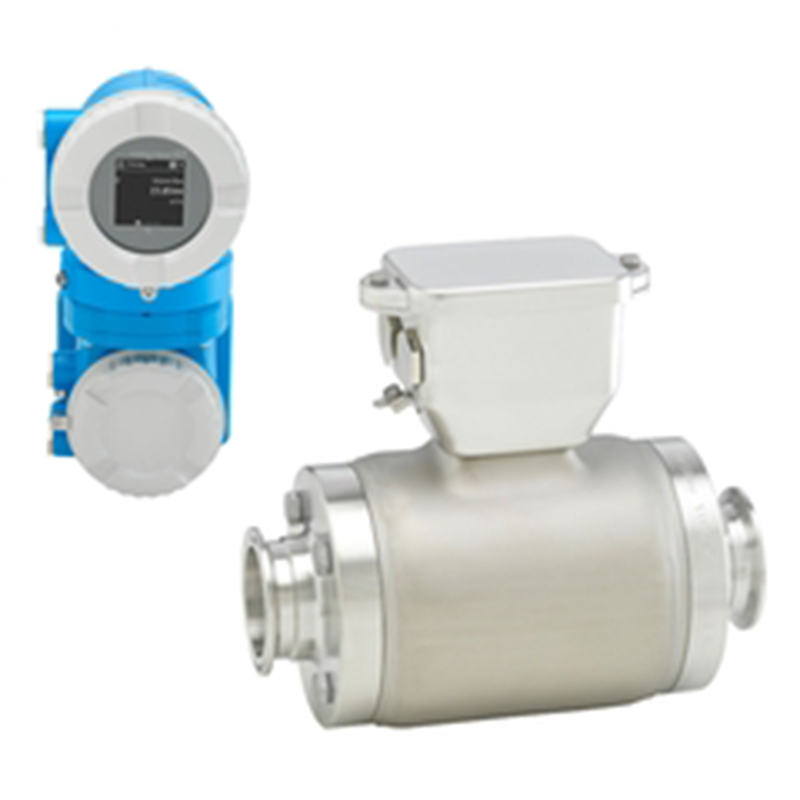

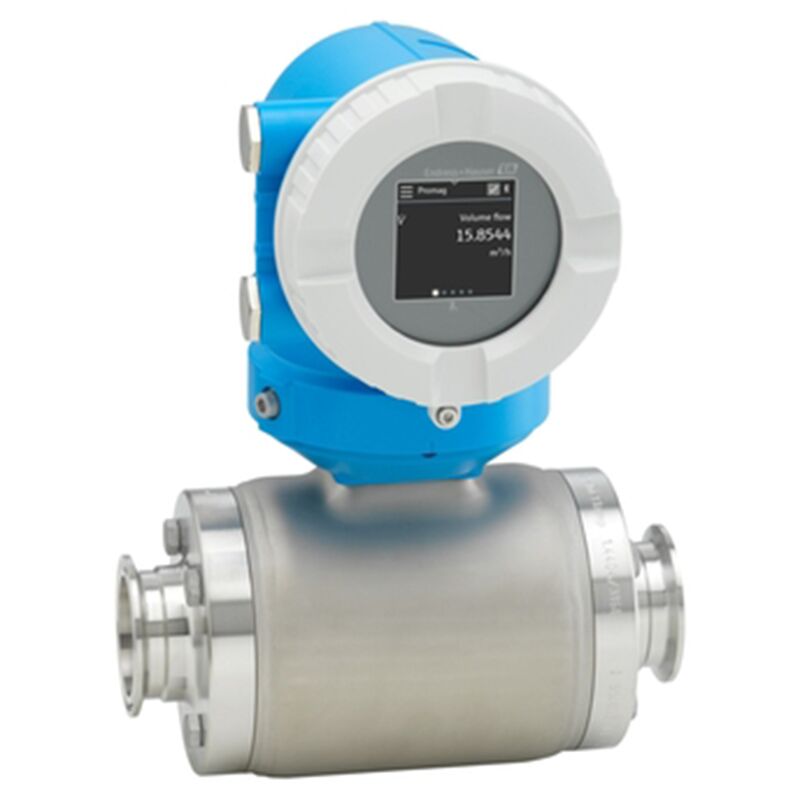

Endress+Hauser Proline Promag H 10 electromagnetic flowmeter

Specifications

• Measuring principle

  Electromagnetic

• Product headline

  Flowmeter for basic hygienic applications with easy-to-use operation concept.
  For applications with sanitary requirements.

• Sensor features

  Flexible installation concept – numerous hygienic process connections. Energy-saving flow measurement – no pressure loss due to cross section constriction. Maintenance-free – no moving parts.
  Liner made of PFA. Sensor housing made of stainless steel (3-A, EHEDG). Wetted materials CIP-/SIP-cleanable.

• Transmitter features

  Optimum usability – display with touch screen (HART and Modbus RS485 communication only) or operation with mobile devices and SmartBlue app. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology.
  System integration with HART, Modbus RS485, IO-Link. Flexible operation with app and optional display.

• Nominal diameter range

  DN 2 to 150 (¹⁄₁₂ to 6″)

• Wetted materials

  Liner: PFA
  Electrodes: 1.4435 (316L); Alloy C22
  Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
  Seals: aseptic molded seal (EPDM, FKM, silicone)

• Measured variables

  Volume flow, temperature, conductivity, mass flow, corrected volume flow, corrected
  conductivity

• Max. measurement error

  Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
  Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)

• Measuring range

  0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min)

• Max. process pressure

  PN 40, Class 150, 20K

• Medium temperature range

  –20 to +150 °C (–4 to +302 °F)

• Ambient temperature range

  –40 to +60 °C (–40 to +140 °F)

• Sensor housing material

  1.4301 (304), corrosion resistant

• Transmitter housing material

  AlSi10Mg, coated

• Degree of protection

  Standard: IP66/67, type 4X enclosure

• Display/Operation

  2.4″ LCD display with touch & auto rotate; Configuration and operation via SmartBlue App (Bluetooth) possible

• Outputs

  4-20 mA HART (active/passive), Pulse/frequency/switch output
  Modbus RS485, 4-20 mA

• Digital communication

  HART, MODBUS RS485, IO-Link

• Power supply

  DC 24 V
  AC 100 to 230 V
  AC 100 to 230 V / DC 24 V (non-hazardous area)

• Hazardous area approvals

  CSA, GP, KC

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
  Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

• Pressure approvals and certificates

  PED, CRN

• Material certificates

  3.1 material

• Hygienic approvals and certificates

  Sanitary approval: EHEDG, 3-A, liner and seals acc. to FDA, cGMP
