Product Details
Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
9 dm³/min to 282 m³/h (2.5 gal/min to 1250 gal/min)
Liner material polyamide: 0 to +60°C (+32 to +140°F)
PN 16, Class 150, 10K
Liner material polyamide: 0 to +60°C (+32 to +140°F)
Electrodes: 1.4435 (316L)
Electromagnetic

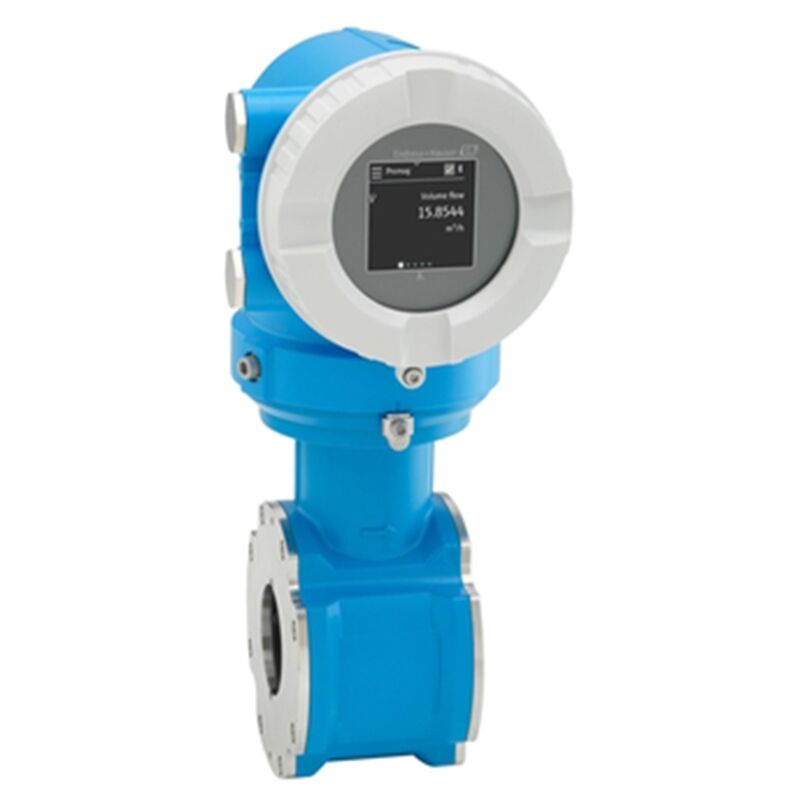

Highly cost-effective wafer flowmeter with easy-to-use operation concept.
For basic water applications, optimized for limited space and plastic pipe installations.
Easy, fast centering of the sensor – innovative housing construction. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.
Short face-to-face length and low weight. Integrated ground disks made of stainless steel. International drinking water approvals.
Optimum usability – display with touch screen (HART and Modbus RS485 communication only) or operation with mobile devices and SmartBlue app. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology.
2-line display with push buttons. Device as compact or remote version. HART.
DN 25 to 100 (1 to 4″)
Liner material polyamide: 0 to +60°C (+32 to +140°F)
Electrodes: 1.4435 (316L)
Volume flow, mass flow
Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
9 dm³/min to 282 m³/h (2.5 gal/min to 1250 gal/min)
PN 16, Class 150, 10K
Liner material polyamide: 0 to +60°C (+32 to +140°F)
-40 to 60°C (-40 to 140°F)
DN 25 to 100 (1 to 12″): AlSi10Mg, coated
Polycarbonat; AlSi10Mg, coated
Compact version: IP66/67, type 4X enclosure
Sensor remote version (standard): IP66/67, type 4X enclosure
LCD display with touch & auto rotate
4-20 mA HART (active/passive), Pulse/frequency/switch output
Modbus RS485, 4-20 mA
HART, MODBUS RS485
DC 24 V
AC 100 to 230 V
AC 100 to 230 V / DC 24 V (non-hazardous area)
CSA, GP
Product safety
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Hygienic approvals and certificates
Documents
Accessories
