Product Details
Volume flow: +/-0.8% o.r. +/- 0.1% o.f.s
up to 750 l/min
-10 to 70°C (+14 to +158 °F)
Permissible short-term temperature, maximum one hour:
85 °C (185 °F)
Repetition after 4 hours at the earliest
16 bar
PEEK, Stainless Steel, FKM, EPDM
Electrodes: 1.4404/316L
Electromagnetic

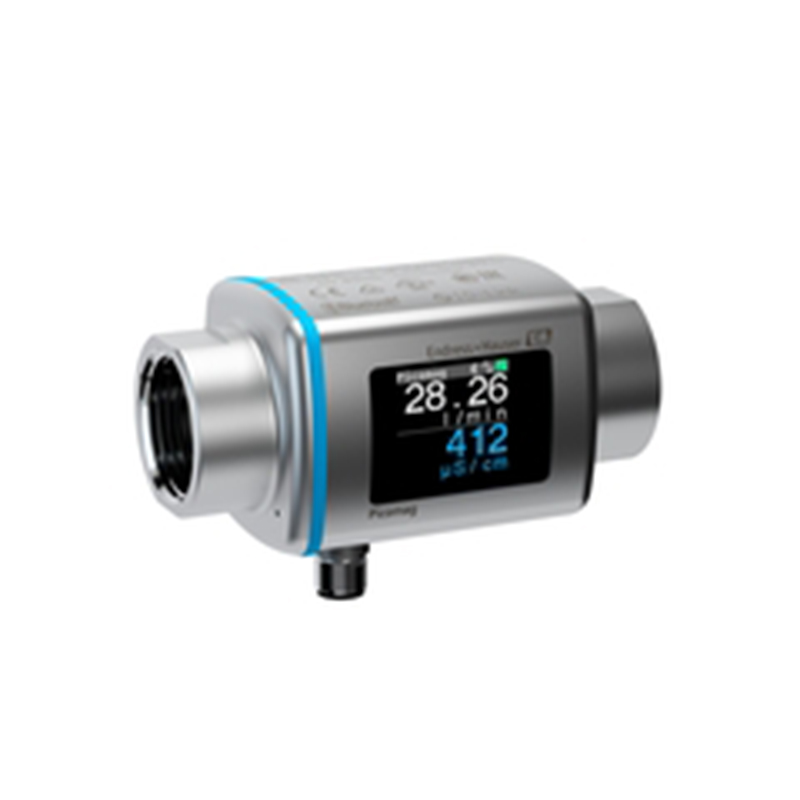

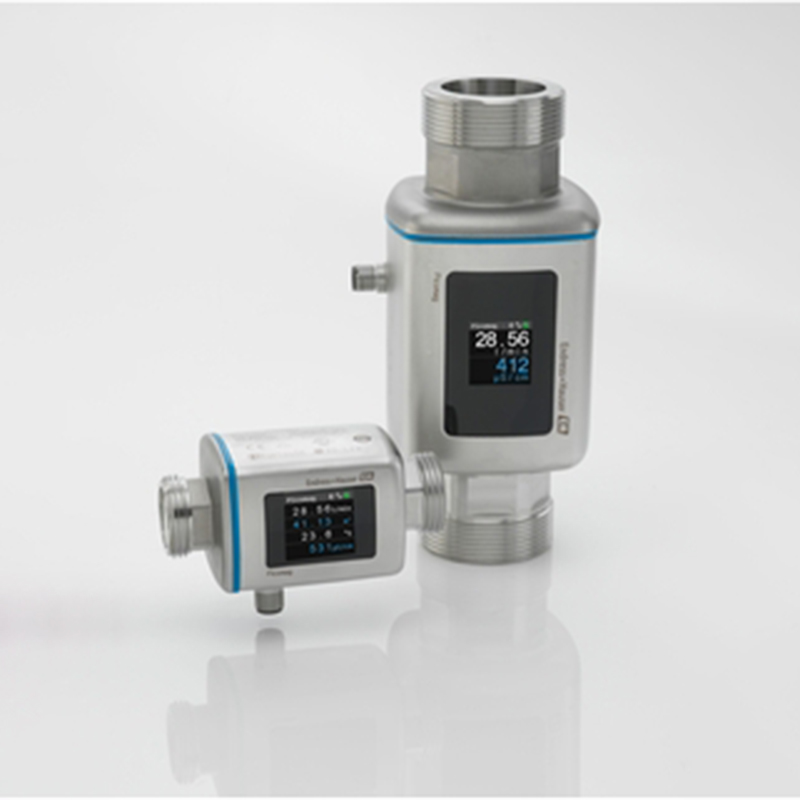

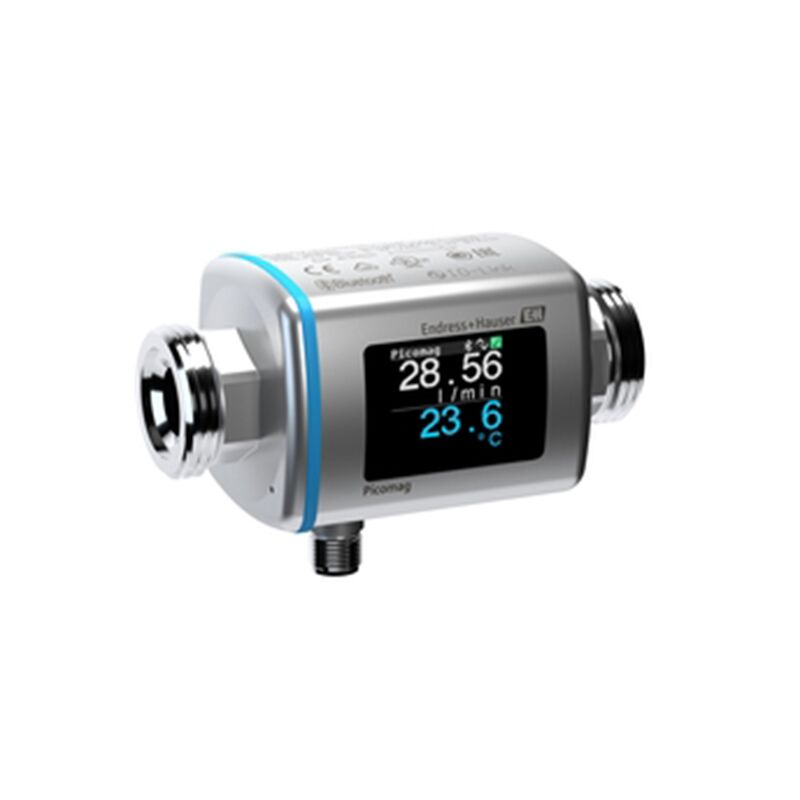

Smart magmeter for utilities – intuitive · convenient · multivariable.
Time-saving, easy configuration even in places difficult to reach – secure Bluetooth connection.
Ideal for process quality control and monitoring due to temperature and conductivity measurement in utilities.
Fewer measuring points necessary – simultaneous flow, conductivity and temperature measurement. Cost-efficient specialist for use in tight spaces e.g. skids – sensor and transmitter in one housing.
High shock and vibration resistance. Degree of protection: IP65/67. Empty pipe detection.
Quick offline configuration check – unique, comfortable knock functionality. Simple device access through its whole lifecycle – no manual needed due to intuitive SmartBlue app. Effortless configuration of several devices – settings can be saved and loaded into other meters. Flexible integration into all fieldbus systems – plug-and-play device with IO-Link.
Wireless remote access via Bluetooth SmartBlue app. IO-Link and various I/Os for all line-sizes. 1.4″ TFT color display with backlight.
DN15 to 50 (1/2 to 2″)
PEEK, Stainless Steel, FKM, EPDM
Electrodes: 1.4404/316L
Volume flow, Temperature, Conductivity
Volume flow: +/-0.8% o.r. +/- 0.1% o.f.s
up to 750 l/min
16 bar
-10 to 70°C (+14 to +158 °F)
Permissible short-term temperature, maximum one hour:
85 °C (185 °F)
Repetition after 4 hours at the earliest
-10 to 60 °C
1.4404/316L, Polycarbonate
1.4404/316L, Polycarbonate
IP 65/67
Integrated display, operation via SmartBlue app
Current (4 to 20mA)
Pulse
Switch
Voltage (2 to 10V)
Status
IO-Link
18 to 30V DC
cULus listing
Drinking water approvals: NSF
