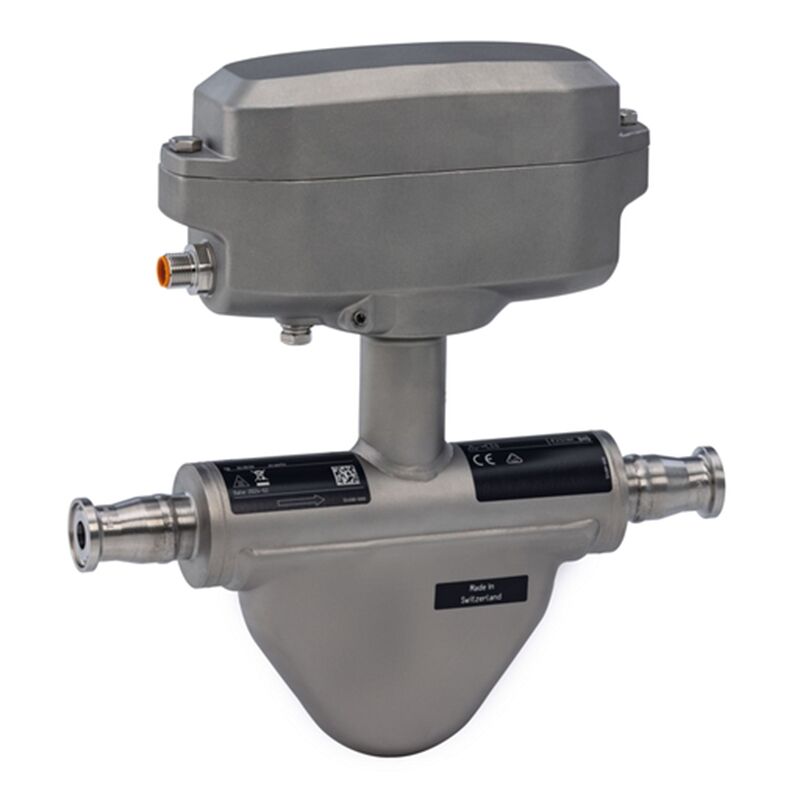

Endress+Hauser Dosimass Coriolis flowmeter

Coriolis

The compact sensor with an ultra-compact transmitter.
Measurement of liquids with the most diverse properties in continuous process control & batching applications.

High process safety – high measuring accuracy for different media in shortest filling time. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Nominal diameter: DN 1 to 40 (¹⁄₂₄ to 1¹⁄₂”). Various hygienic process connections, 3-A conform. CIP, SIP cleanable sensor.

Versatile and time-saving wiring – plug connector. Fast commissioning – pre-configured devices. Automatic recovery of data for servicing.
Robust, ultra‐compact transmitter housing. Pulse/frequency/switch output, Modbus RS485. Excellent and easily cleanable transmitter.

DN 1 to 40 (¹⁄₂₄ to 1¹⁄₂”)

Measuring tube:
1.4435 (316/316L) (DN 1 to 4 mm (¹⁄₂₄ to ¹⁄₈”)
1.4539 (904L) (DN 8 to 40 mm (³⁄₈ to 1 ½”)
Process connection
1.4435 (316/316L) (DN 1 to 4 mm (¹⁄₂₄ to ¹⁄₈”)
1.4539 (904L) (DN 8 to 40 mm (³⁄₈ to 1 ½”)

Mass flow, density, temperature, volume flow

Mass flow (liquid): ±0.15 %
Density (liquid): ±0.0005 g/cm³

0 to 45 000 kg/h (0 to 1654 lb/min)

PN 40

–40 to +130 °C (–40 to +266 °F)
150 °C allowed for 1 h

–20 to +60 °C (–4 to +140 °F)

Stainless steel, 1.4404 (316/316L) (DN 1 to 4 mm (¹⁄₂₄ to ¹⁄₈”)
Stainless steel, 1.4301 (304) (DN 8 to 40 mm (³⁄₈ to 1 ½”)

Stainless steel, 1.4409 (CF3M)

IP67, type 4X enclosure

No local operation
Configuration via operating tools possible

Pulse/frequency/switch output (passive)

None

Modbus RS485, IO-Link

DC 20 to 30 V

ATEX, IECEx, UL, UK Ex

3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR
3-A

CE
