Product Details
Mass flow: ±0.5 % of batch
0 to 150 kg/min (0 to 330 lb/min)
–50 to +125 °C (–58 to +257 °F)
350 bar (5080 psi)
Mesuring tube: 1.4435 (316L)
Connection: 1.4404 (316/316L)

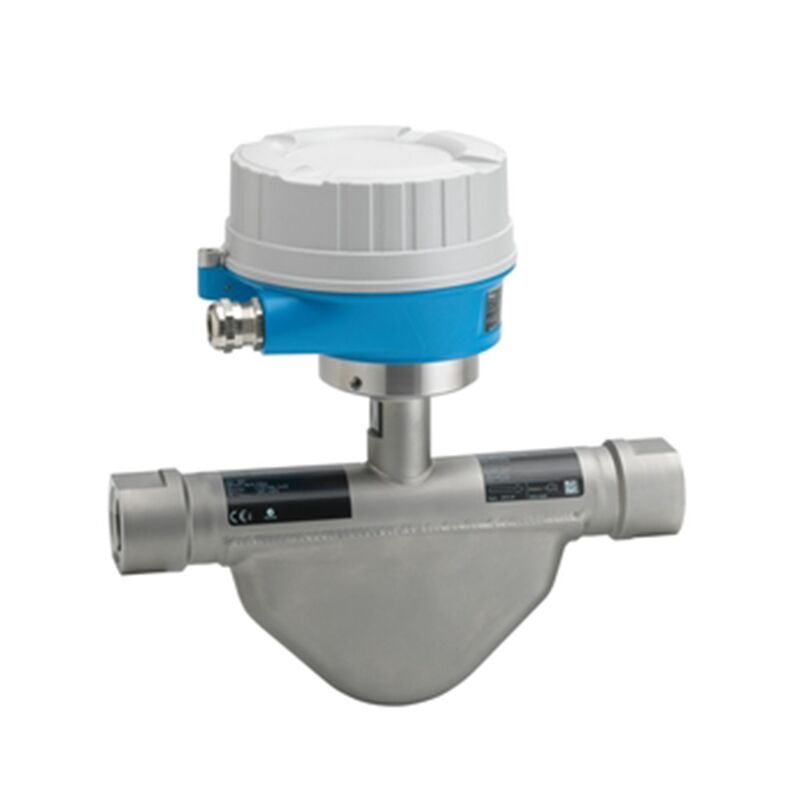

Coriolis
The refueling application flowmeter with seamless system integration. Accurate measurement of compressed natural gas (CNG) in high pressure refueling applications.
Excellent operational safety – reliable under extreme process conditions. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in/outlet run needs. Flow rates up to 150 kg/min (330 lb/min). Process pressure up to 350 bar (5080 psi).
Space‐saving transmitter – full functionality on the smallest footprint. Fast commissioning – pre‐configured devices. Automatic recovery of data for servicing. Robust, compact transmitter housing. Modbus RS485.
DN 8 to 25 (⅜ to 1″)
Mesuring tube: 1.4435 (316L)
Connection: 1.4404 (316/316L)
Mass flow, density, temperature, volume flow, corrected volume flow, reference density
Mass flow: ±0.5 % of batch
0 to 150 kg/min (0 to 330 lb/min)
350 bar (5080 psi)
–50 to +125 °C (–58 to +257 °F)
–40 to +60 °C (–40 to +140 °F)
1.4301 (304), corrosion resistant
AlSi10Mg, coated
IP66/67, type 4X enclosure
No local operation
Configuration via operating tools possible
None
None
Modbus RS485
DC 20 to 30 V
ATEX, IECEx, cCSAus, NEPSI, INMETRO
Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
CRN
3.1 material
