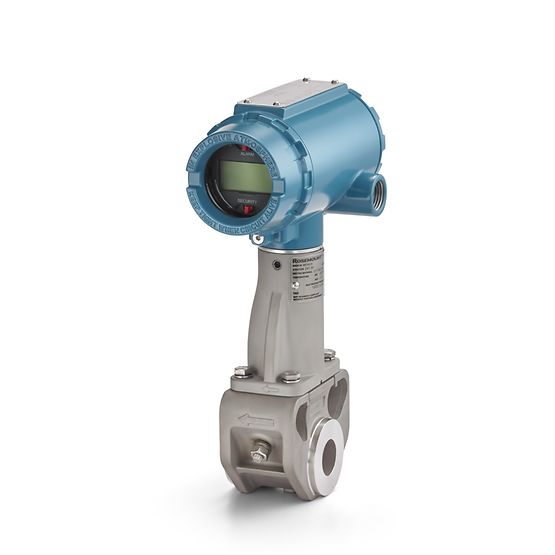

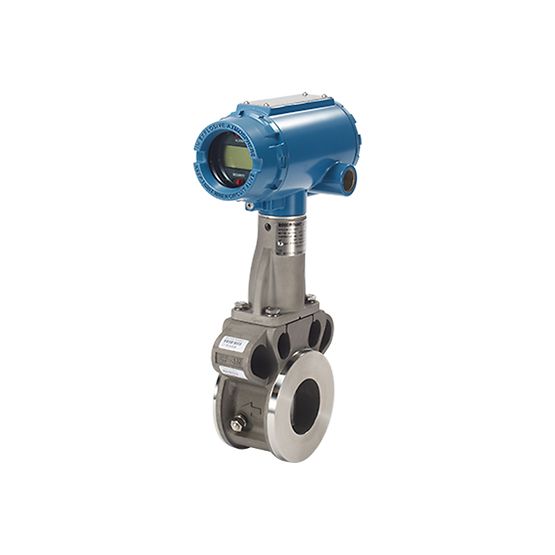

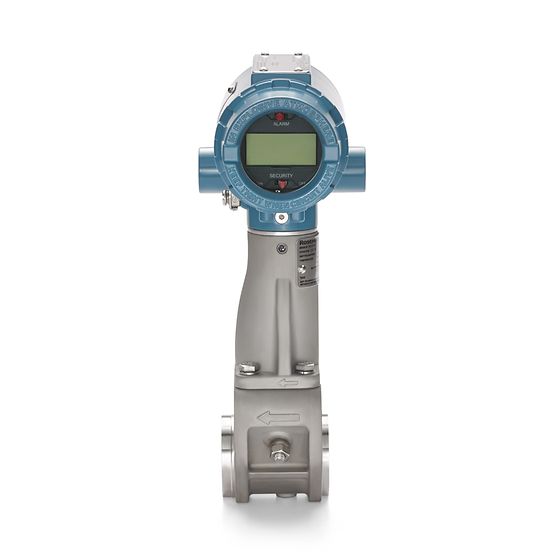

Emerson Rosemount 8800 Wafer Vortex Flow Meter

The Rosemount 8800 Wafer Vortex flow meter is a lightweight, cost-effective solution that is easy to install and ideal for utility applications. The 8800 Wafer Vortex Flow Meter offers world-class reliability with a gasket-free, non-clog meter body that eliminates potential leak points, resulting in maximum process availability and fewer unscheduled shutdowns. The unique design of the 8800 features isolated sensors that eliminate the need to break process seals for flow and temperature sensor replacement.

Categories , , ,
Get a Quote Now

GET INSTANT QUOTE

    FEATURES

    Product Details

    Description

    Features

    • A lightweight, cost-effective solution that is easy to install and ideal for utility applications
    • An isolated sensor allows for online replacement without breaking the process seal
    • Increase plant availability, decrease maintenance costs, and eliminate potential leak points with a unique gasket-free meter body design
    • Achieve vibration immunity with a mass balanced sensor and Adaptive Digital Signal Processing with visual filtering
    • A standard internal signal generator included in every meter simplifies electronics verification
    • All meters are calibrated and are given a unique calibration number called a reference k factor
    • Standard 8800 meter is capable of up to SIL 2 rated applications
    • Detect liquid to gas phase change using Smart Fluid Diagnostics

    Specifications

    Specifications

    Flow Meter Accuracy
    ± 1.3% of rate at 30 psia through 2,000 psia in steam using 8800 MultiVariable (MPA option)
    ± 0.65% of volumetric rate for liquids
    ± 1% of volumetric rate for gas and steam
    Turndown
    38:1
    Output
    4-20 mA with HART® 5 or 7
    4-20 mA with HART® 5 or 7 and scalable pulse output
    FOUNDATION fieldbus ITK6 with 2 Analog Input blocks, 1 Backup Link Active Scheduler function block, 1 Integrator function block, and 1 PID function block
    Modbus RS-485 with device status and 4 variables
    Wetted Material
    Stainless Steel; 316 / 316L and CF3M
    Nickel Alloy; C-22 and CW2M
    High Temp Carbon Steel; A105 and WCB
    Low Temp Carbon Steel; LF2 and LCC
    Duplex; UNS S32760 and 6A
    Consult factory for other wetted material
    Flange Options
    ANSI Class 150 to 1500
    DIN PN 10 to PN 160
    JIS 10K to 40K
    Flanges are available in a variety of facings
    Consult factory for additional flange ratings
    Operating Temperatures
    -330°F to 800°F (-200°C to 427°C)
    Line Size
    1/2″ – 8″ (15 – 200 mm)
