Description

Overview

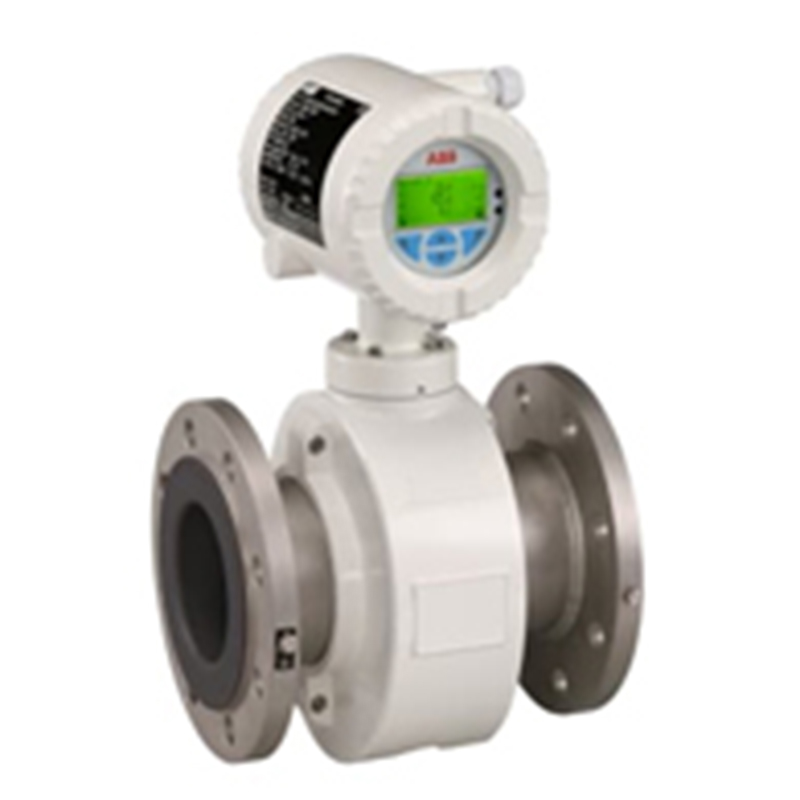

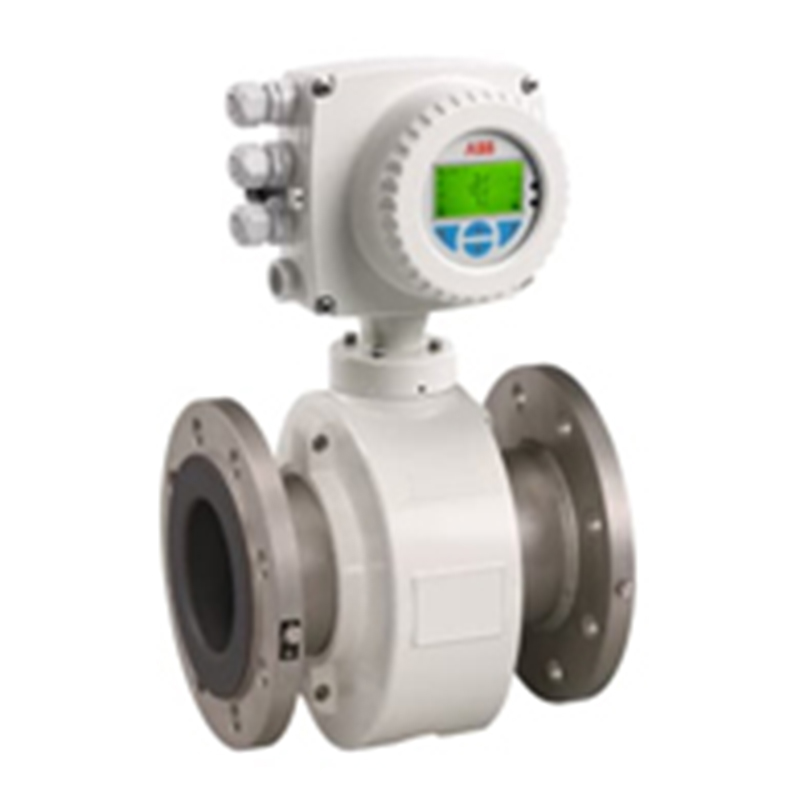

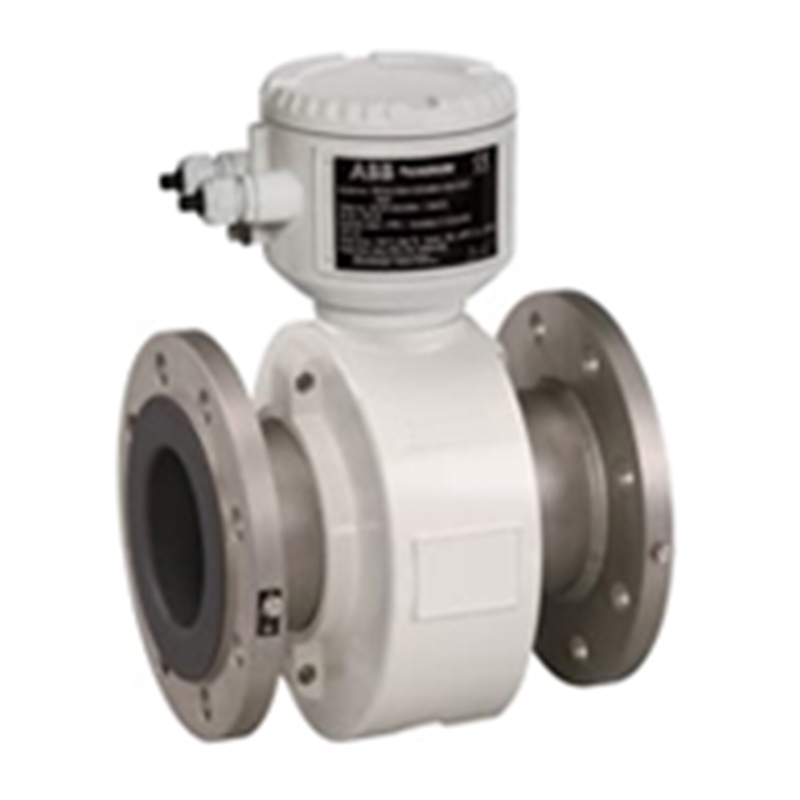

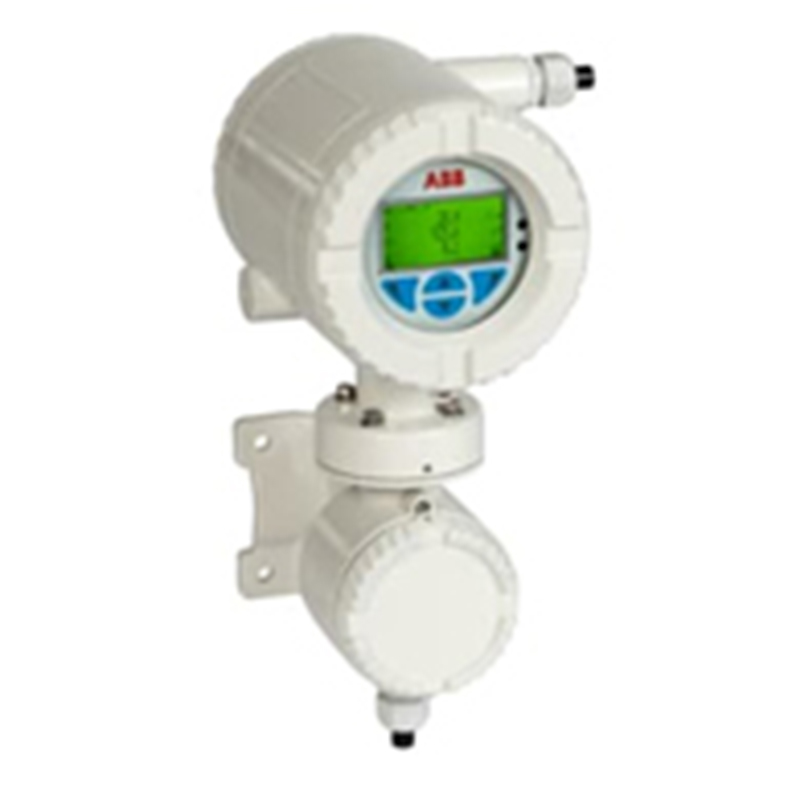

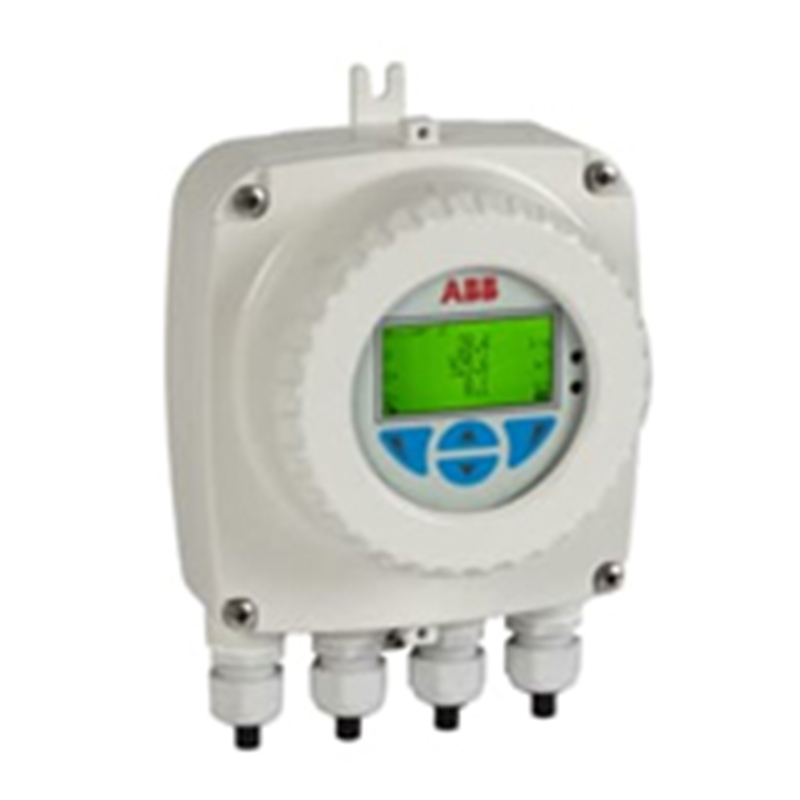

ProcessMaster FEW630 – The first choice for all water industry applications.
Advanced features and functionality that enable you to operate more efficiently, reduce costs and increase profitably.

Real-time diagnostic keep your process up and running
– Detecting critical process conditions at an early stage reduce unscheduled downtime and maintenance
– Clear text messages simplify troubleshooting
In-built noise/grounding check
– Verify the installation is correct from day one
– Checks for proper grounding which is fundamental to an accurate flow measurement
In-built verification for highest confidence in your flow measurement
– Checking for sensor and transmitter integrity
– No need to remove the flowmeter from the process
Simplicity of operation
– Automatic self-configuration sequence
– Incredibly easy to work with
Ethernet IP communication
– For remote access to built-in diagnostic monitoring the flowmeter and your process
– Flowmeter verification and configuration over Ethernet minimizing commissioning time
– Built-in webserver, no additional software required for flowmeter configuration

Specifications

Data

General specifications:

Measuring value error
– Standard 0.4 % of rate, option for 0.3% and 0.2 % of rate
Nominal diameter
– DN 25 to 3000 (1 to 120 in.)
Process connection
– FlangeFlange based on ISO, ASME, JIS, AS2129 table D, E, AWWA C207
Nominal pressure
– PN 6 to 40; ASME CL 150, 300 JIS 5K, 20K, AS PN16, 35, AWWA C207 Class B, D, E
Lining
– Hard rubber
IP rating
– IP67, IP68, NEMA4x
Fluid temperature
– min.: -5°C (23 °F) max.: 90 °C (194 °F)
Communication
– HART
– PROFIBUS DP, Profibus PA
– Modbus RTU, Modbus TCP
– Ethernet IP, Profinet, Webserver
Ex approvals
– ATEX, IECEx, cFMus
Process diagnostics
– Empty pipe, gas bubbles, electrode impedance, conductivity, sensor temperature
