Description

Overview

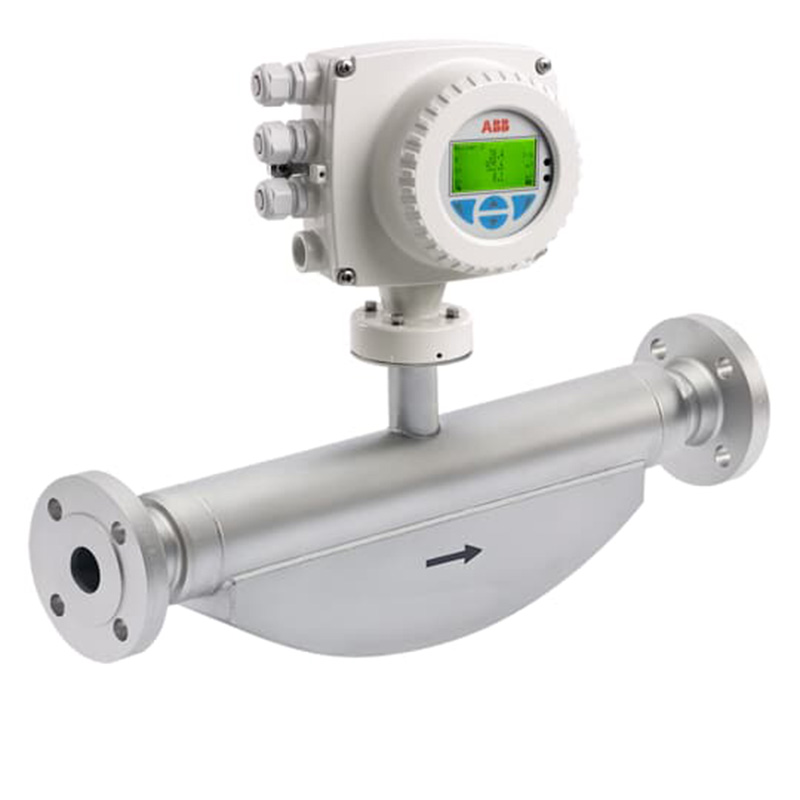

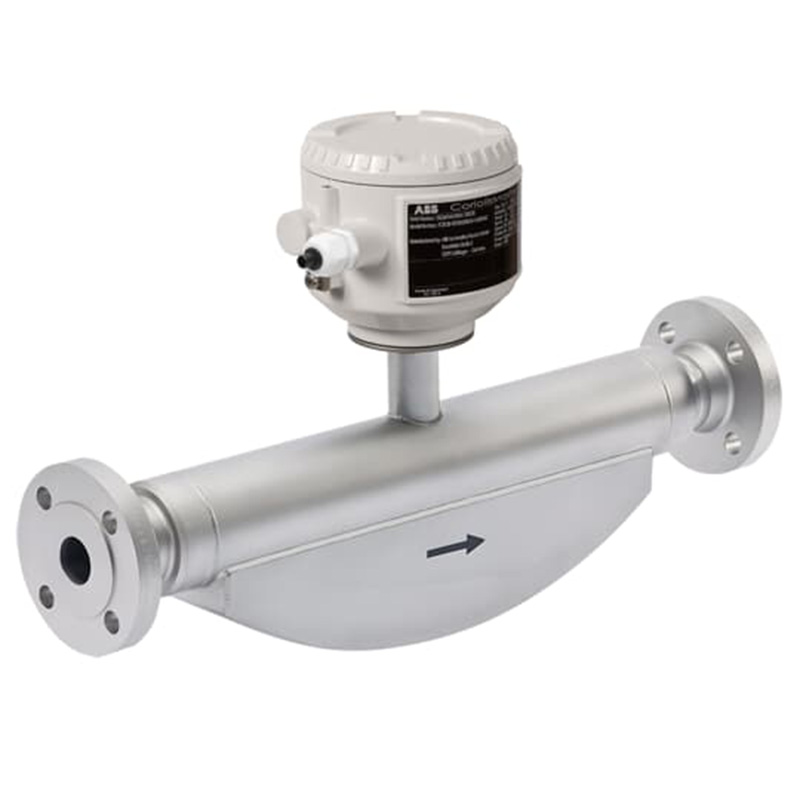

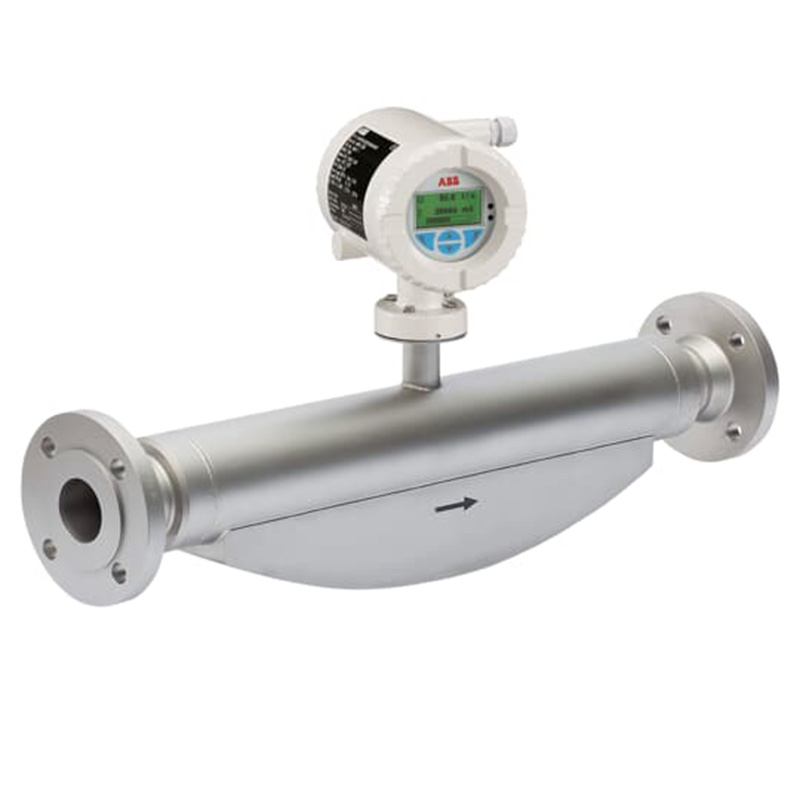

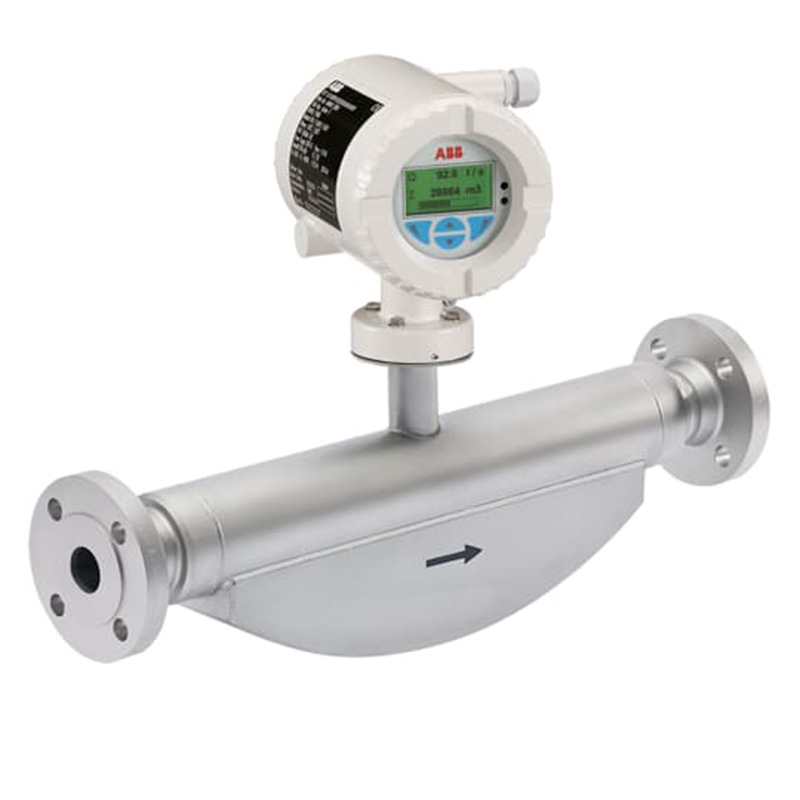

With no up or downstream piping requirements the compact Coriolis flowmeters can be installed in the tightest spaces, enabling applications not possible before.

The FCB400 series delivers:

Up to five modular I/Os
– Multivariable meter design
– Optional plug-in cards
– Automatic firmware update
– Various communication protocols available:
EthernetIP, Modbus TCP, Web Browser and Profinet

SmartSensor
– All digital solution
– Installation flexibility
– Meter intelligence located in the sensor

SensorApplicationMemory
– Maximum data security
– Plug and play electronics replacement

ABB common look and feel
– Easy Set-up
– Operation through the glass via capacitive keys

VeriMass on-board verification and diagnostics
– Online preventive maintenance
– Extended maintenance cycles
– Reduced maintenance effort

Designed for 70 °C (158 °F) ambient temperature and high vibrations
Enhanced Coriolis control (ECC) option for advanced measurement for multiphase conditions and other challenging fluids
Lower pressure drop
Self-draining
Global approvals for explosion protection
OIML R117 and MID approved

The FCB450 adds:

DensiMass software for direct concentration measurement
FillMass software for filling application control
OIML R117; MID approved

Specifications

Data

General specifications:

Nominal sizes / measuring ranges
– DN 15 (1/2 in.) / 0 to 8,000 kg/h (17,637 lb/h)
– DN 25 (1 in.) / 0 to 35,000 kg/h (77,162 lb/h)
– DN 50 (2 in.) / 0 to 90,000 kg/h (198,416 lb/h)
– DN 80 (3 in.) / 0 to 250,000 kg/h (551,156 lb/h)
– DN 100 (4 in.) / 0 to 520,000 kg/h (1,146,404 lb/h)
– DN 150 (6 in.) / 0 to 860,000 kg/h (1,895,975 lb/h)
Ex approvals
– ATEX zone 0/1/2, cFMus Div 1/2 and zone 0/1/2
– NEPSI Zone 0/1/2
– Various other approvals
– OIML R117; MID approved
Wetted materials
– 1.4404 / 1.4435 (316L) or Hasteloy C
Accuracy for liquids
FCB430
– Mass and volume: 0.4 % o. r. / 0.25 % o. r. / 0.2 % o. r.
– Density: 10 g/l
FCB450
– Mass: 0.15 % o. r. / 0.1 % o. r., volume: 0.15 % o. r.
– Density: 2 g/l or 1 g/l or 0.4 g/l
Measuring medium temperature
FCB430
– -50 to 160 °C (-58 to 320 °F)
FCB450
– -50 to 205 °C (-58 to 400 °F)
Outputs
– 5 modular I/Os
– HART 7.1
– PROFIBUS DP
– Modbus
– Ethernet
- Ethernet IP
- Modbus TCP
- Webserver
- More protocols in preparation
Power supply
– 11 to 30 V DC, 110/230 V AC
– Power over Ethernet
